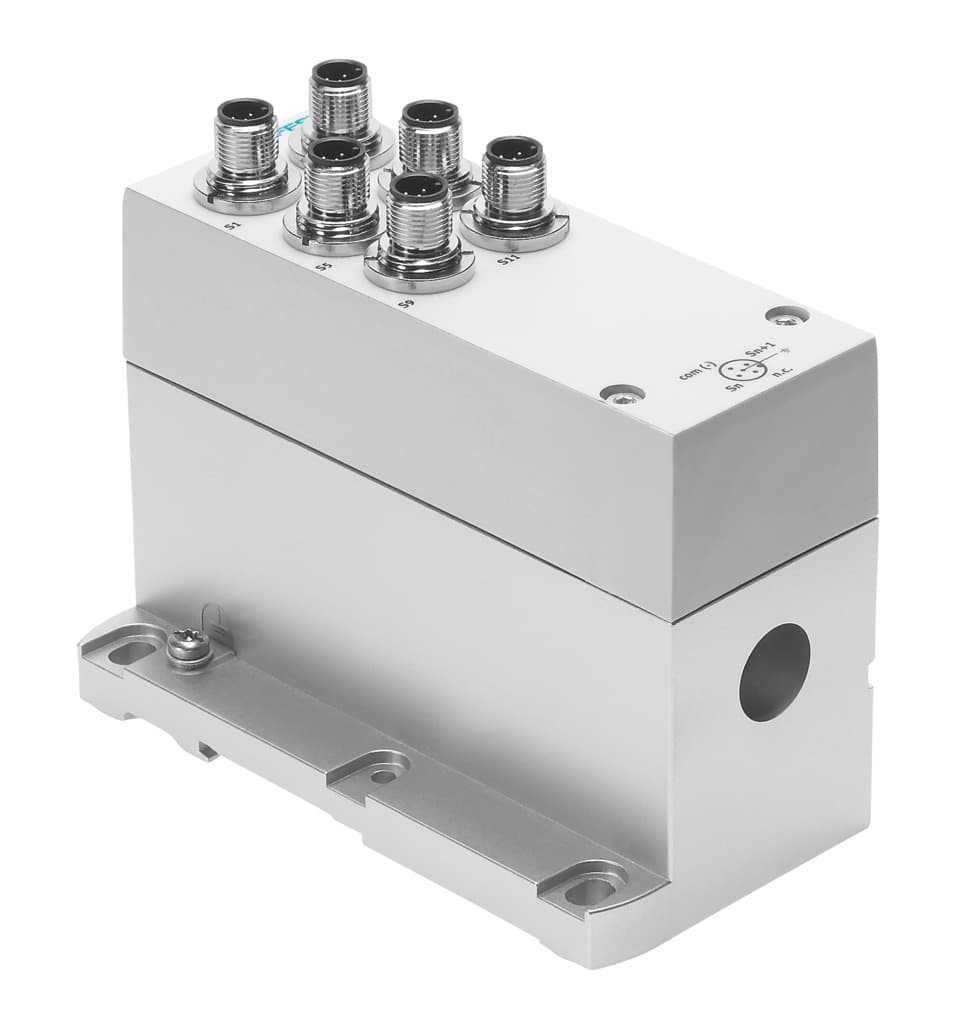

vabe-s6-lt-c-s6-r5
Product ID:11644
Updated: 2026/7/4
Key Features
- 1Offer optional mounting for versatile system integration.
- 2Control up to 12 monostable and 6 bistable valve positions.
- 3Ensure reliable 24V DC operation with +/-10% voltage tolerance.
- 4Protect against dust and water with IP65 and NEMA 4 rating.
- 5Construct from die-cast aluminum and PA for corrosion resistance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Max. no. of valve positions | 12 for monostable pneumatic valves 6 for bistable pneumatic valves |
| Max. residual current | 10A | Nominal operating voltage DC | 24V |
| Permissible voltage fluctuations | +/- 10 % | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 760g |
| Number of electrical connections | 6 | Electrical actuation | Multi-pin |
| Electrical connection | 5-pin M12 Plug | Cover material | PA |
| Housing material | Die-cast aluminum | Manufacturer ID | 549046 |
Specifications may be subject to change without notice
