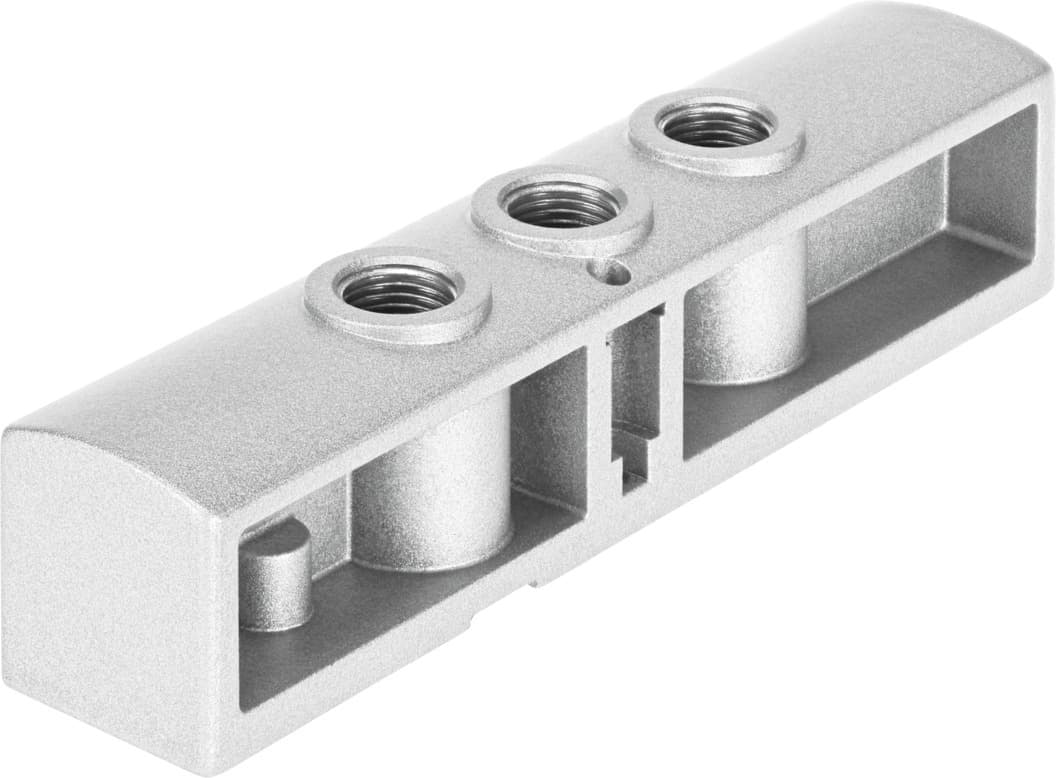

vabf-b10-20-p1a4-g18
Product ID:14538
Updated: 2026/7/4
Key Features
- 1Operate within a wide pressure range from -0.9 to 10 bar.
- 2Resist moderate corrosion with CRC classification 2.
- 3Construct robustly from aluminum die-cast and RoHS materials.
- 4Mount easily using the through-hole design.
- 5Connect precisely with G1/8 pneumatic ports.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating pressure | -0.9bar 10bar | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Max. tightening torque | 1.4Nm |
| Product weight | 78g | Type of mounting | With through-hole |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/8 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Supply plate material | Die-cast aluminum | Manufacturer ID | 576492 |
Specifications may be subject to change without notice
