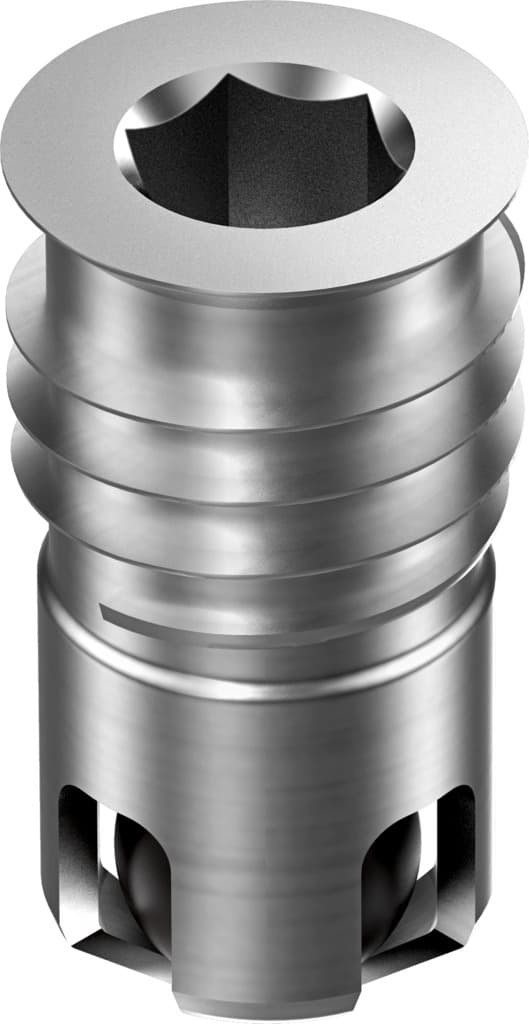

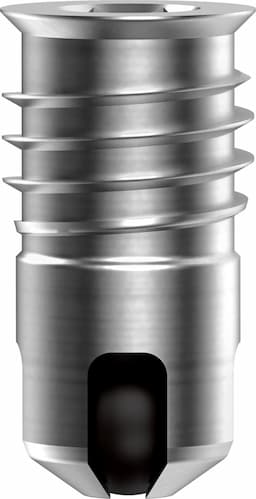

vabf-l1-10h-h2
Product ID:16040
Updated: 2026/4/3
Key Features
- 1Ensure reliable flow control with a piloted non-return function. 2、Operate across a wide 0.5 to 8 bar pressure range. 3、Resist corrosion with CRC1 and PWIS conformity standards. 4、Simplify installation via tapped mounting design. 5、Save space using the compact 10 mm valve size.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve size | 10mm | Valve function | Unlockable non-return function |
| Operating pressure | 0.5bar 8bar | Certification | c UL us - Recognized (OL) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5°C 60°C | Product weight | 0.4g |
| Type of mounting | Tapped | Note on materials | RoHS-compliant |
| Manufacturer ID | 8047364 |
Specifications may be subject to change without notice
