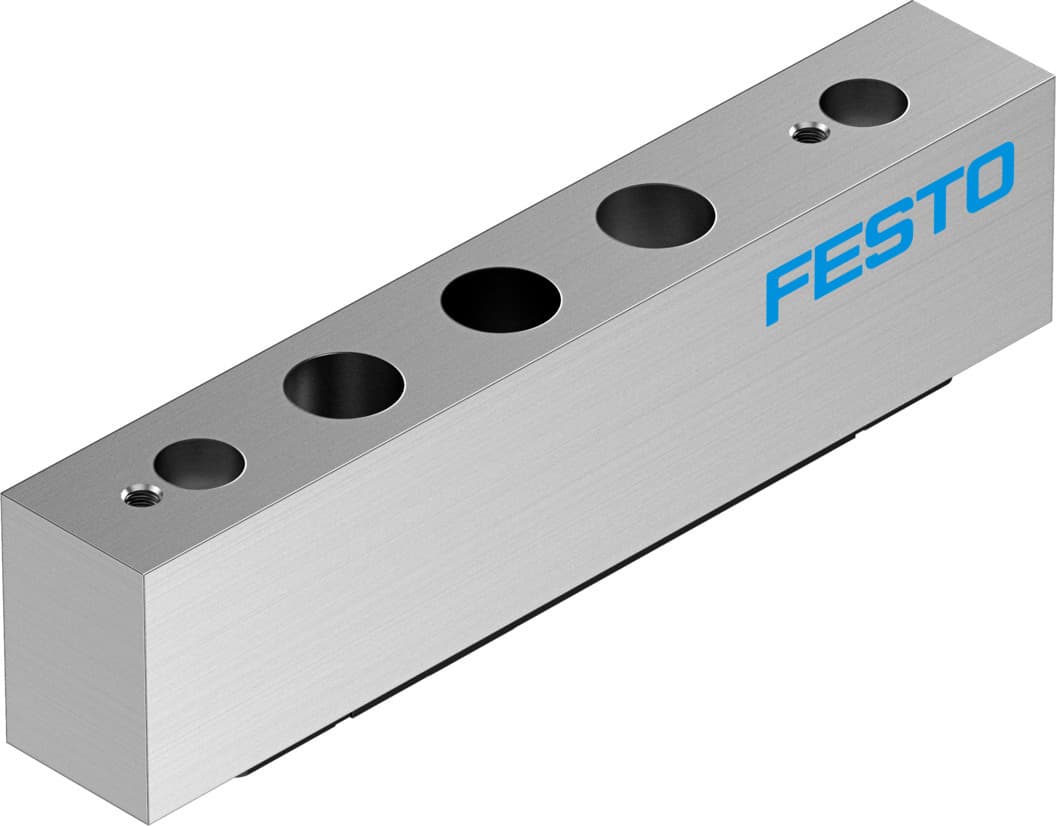

vabf-l1-p3a3-m7
Product ID:14168
Updated: 2026/4/4
Key Features
- 1Position valves efficiently with a 10.5 mm grid dimension. 2、Operate reliably across a -0.9 to 10 bar pressure range. 3、Resist moderate corrosion with CRC 2 classification. 4、Secure valves using a max 0.45 Nm tightening torque. 5、Ensure compliance with RoHS-approved wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 1 |
| Symbol | 00995306 | Operating pressure | -0.9bar 10bar |
| Certification | RCM compliance mark c UL us - Recognized (OL) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Max. tightening torque for valve mounting | 0.45Nm |
| Product weight | 220g | Pneumatic connection 1 | M7 |
| Note on materials | RoHS-compliant | Plate material | Wrought aluminum alloy |
| Manufacturer ID | 574592 |
Specifications may be subject to change without notice
