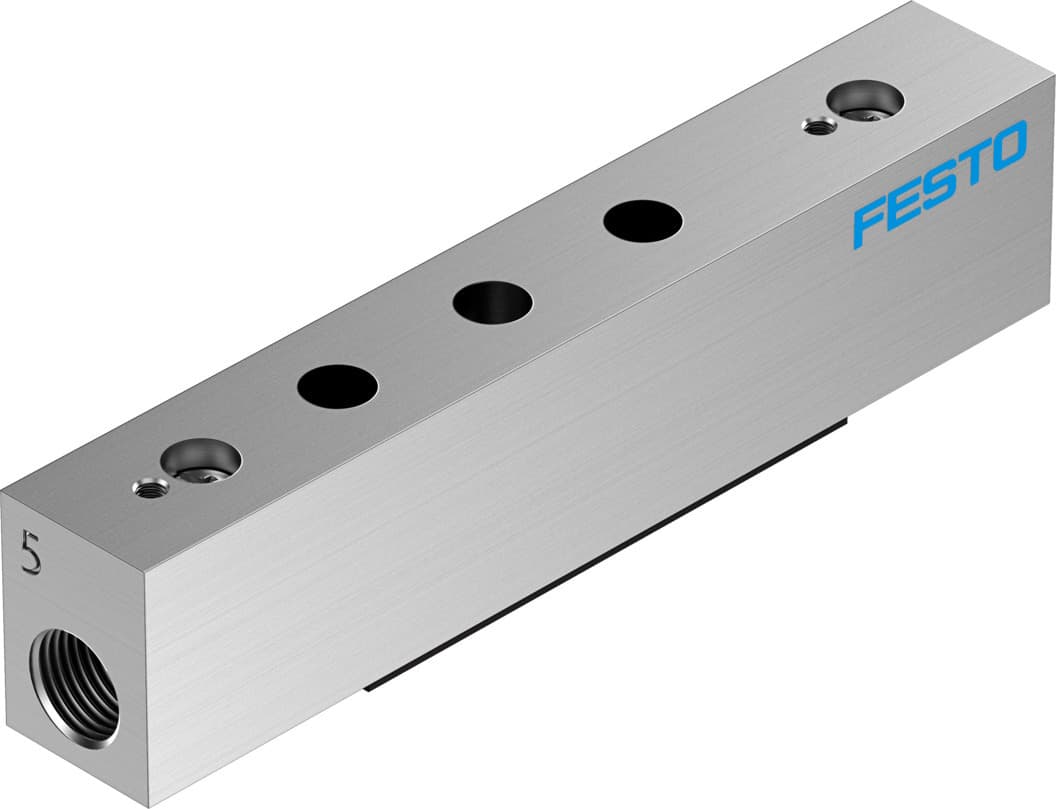

vabf-l1-p7a13-g18
Product ID:14171
Updated: 2026/7/15
Key Features
- 1Utilize a compact design with a 16mm grid dimension for space-saving installations.
- 2Control precisely with compatibility for 1 valve position.
- 3Operate across a wide pressure range from -0.9 to 10 bar.
- 4Resist moderate corrosion stress with CRC 2 classification.
- 5Ensure environmental compliance with RoHS-approved wrought aluminum alloy.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Max. no. of valve positions | 1 |
| Symbol | 00995307 | Operating pressure | -0.9bar 10bar |
| Certification | RCM compliance mark c UL us - Recognized (OL) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Max. tightening torque for valve mounting | 0.65Nm |
| Product weight | 350g | Pneumatic connection 3 | G1/8 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Plate material | Wrought aluminum alloy | Manufacturer ID | 574595 |
Specifications may be subject to change without notice
