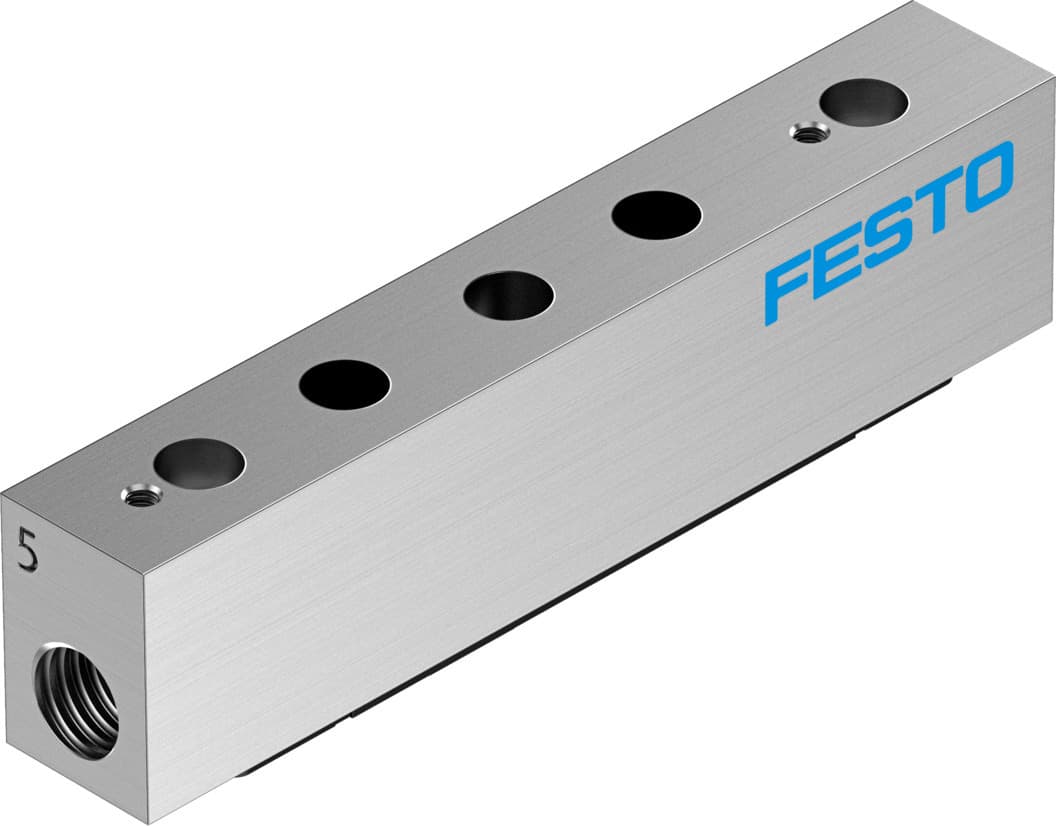

vabf-l1-p7a13-m7
Product ID:14170
Updated: 2026/7/15
Key Features
- 1Ensure durability with RoHS-compliant wrought aluminum alloy construction.
- 2Save space using the compact 10.5 mm width design.
- 3Meet standards with RCM and UL compliance certifications.
- 4Resist moderate corrosion stress classified as CRC 2.
- 5Simplify integration via M7 threaded pneumatic connections.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 1 |
| Symbol | 00995307 | Operating pressure | -0.9bar 10bar |
| Certification | RCM compliance mark c UL us - Recognized (OL) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Max. tightening torque for valve mounting | 0.45Nm |
| Product weight | 220g | Pneumatic connection 3 | M7 |
| Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
| Plate material | Wrought aluminum alloy | Manufacturer ID | 574594 |
Specifications may be subject to change without notice
