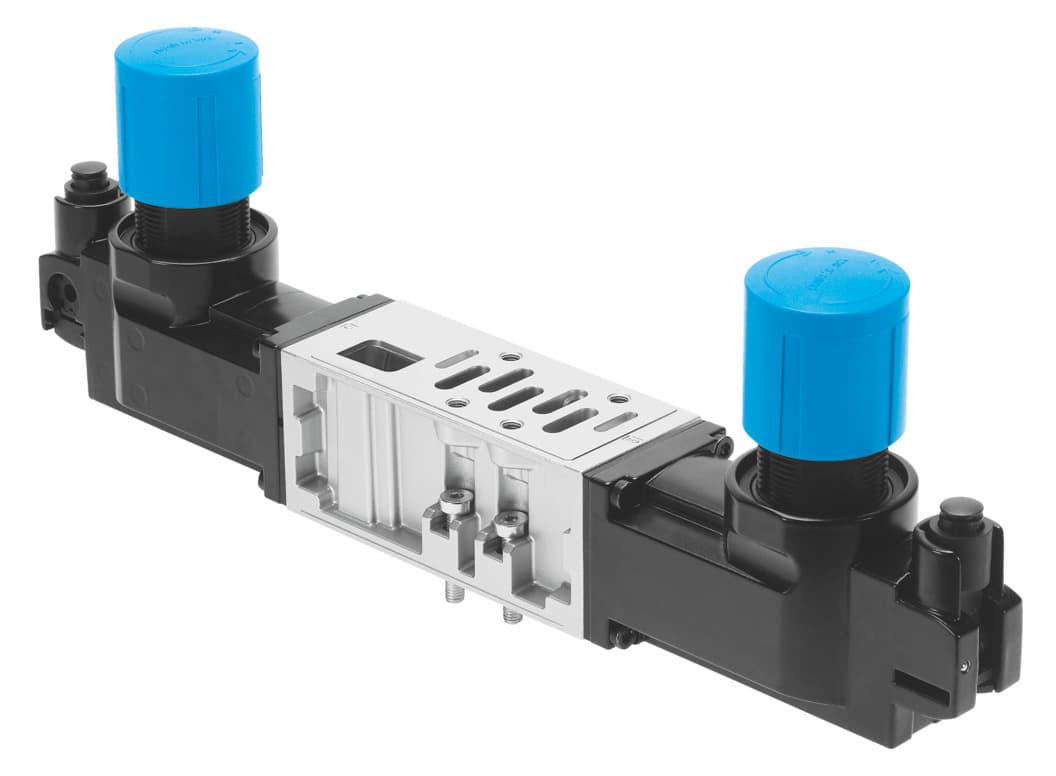

vabf-s1
Product ID:11300
Updated: 2026/4/3
Key Features
- 1Offer optional mounting positions for versatile installation on manifold or individual sub-bases. 2、Ensure reliable pressure control with secondary venting for constant output. 3、Support lubricated operation as required for smooth and efficient performance. 4、Provide CRC 0 corrosion resistance to withstand harsh environmental conditions. 5、Construct with die-cast aluminum for durability and RoHS compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | ISO 5599-1 | Mounting position | Any |
| Controller function | Outlet pressure constant With secondary exhausting | Optional pressure gauge | Possible |
| Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
| Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Pressure gauge connection | With retaining clamp | Note on materials | RoHS-compliant |
| Material of operator panel | PA | Controller housing material | Die-cast aluminum |
| Manufacturer ID | 546811 |
Specifications may be subject to change without notice
