vabf-s1-1-f1b1-c
Product ID:11649
Updated: 2026/4/3
Key Features
- 1Ensure precise pneumatic control for optimal system performance. 2、Meet ISO 5599-1 and 5599-2 standards for broad compatibility. 3、Mount easily between manifold sub-bases and valves. 4、Utilize durable die-cast aluminum for corrosion resistance. 5、Control exhaust air flow to optimize efficiency.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 42mm | Based on norm | ISO 5599-1 |
| Mounting position | Any | Pneumatic vertical stacking | Throttle plate exhaust air flow control |

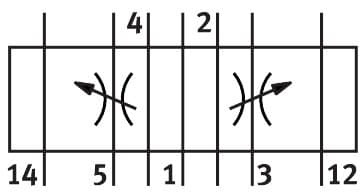

| Symbol | 00991467 | Operating pressure | -0.9bar 10bar |
| Standard nominal flow rate | 1100l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 220g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Manufacturer ID | 549102 |
Specifications may be subject to change without notice
