vabf-s1-1-l1d1-c
Product ID:11650
Updated: 2026/4/3
Key Features
- 1Ensure reliable pneumatic shut-off control with the VABF-S1-1-L1D1-C to minimize pressure leaks. 2、Guarantee wide system compatibility by adhering to the ISO 5599-1 standard. 3、Mount flexibly between manifold sub-bases and valve terminals for optimized design. 4、Withstand operating pressures up to 10 bar with a robust die-cast aluminum housing. 5、Maintain performance in various conditions with a corrosion resistance class of CRC 0.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 42mm | Based on norm | ISO 5599-1 |
| Mounting position | Any | Pneumatic vertical stacking | Shut-off for 1 |

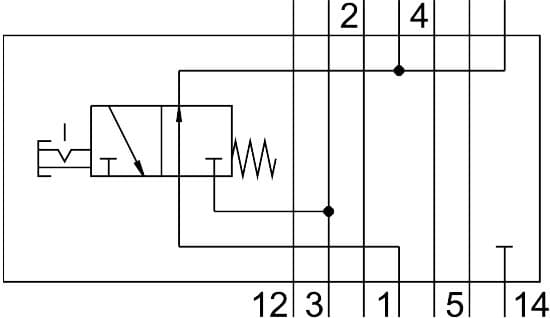

| Symbol | 00991890 | Operating pressure | -0.9bar 10bar |
| Standard nominal flow rate | 1200l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 600g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Manufacturer ID | 549103 |
Specifications may be subject to change without notice
