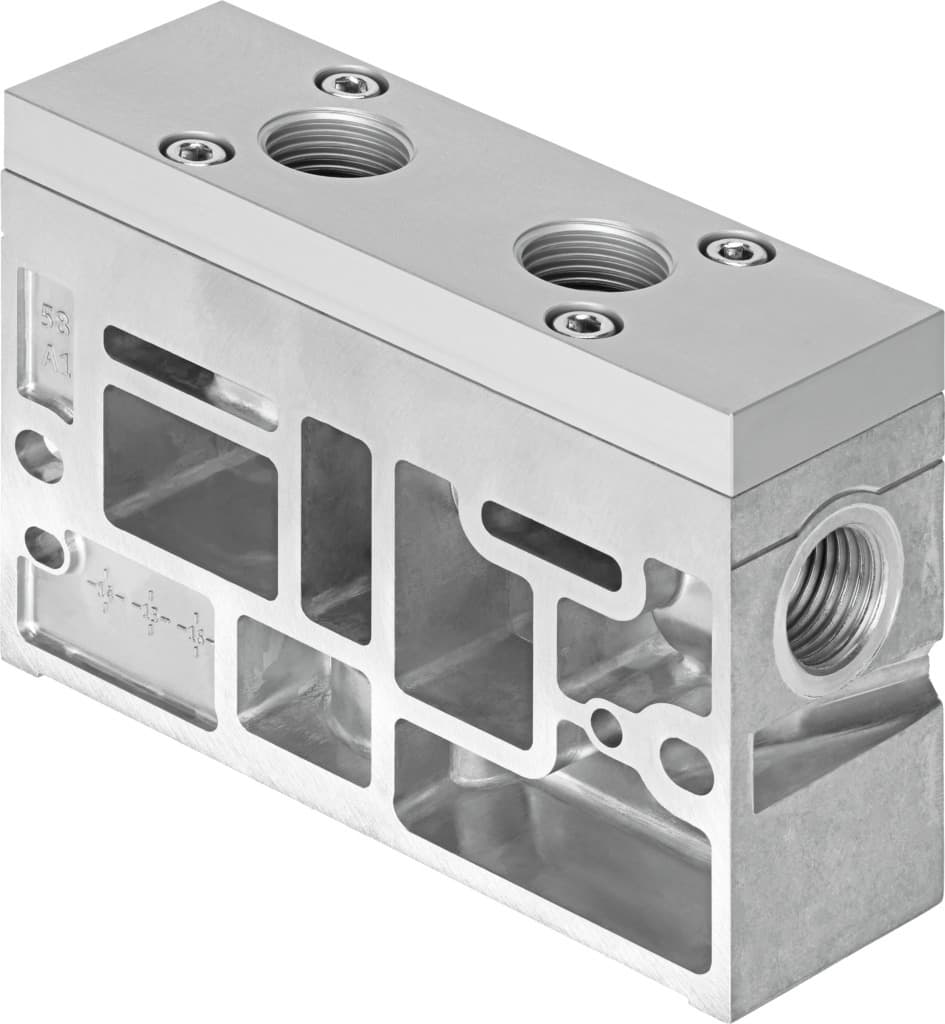

vabf-s1-1-p1a11-n12
Product ID:15910
Updated: 2026/7/4
Key Features
- 1Engineer precise control and reliable operation.
- 2Ensure compatibility with various Festo automation systems.
- 3Construct from durable, high-quality materials for longevity.
- 4Simplify installation with a straightforward process.
- 5Optimize airflow and pressure management in systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 44mm | Exhaust air function | Via throttle plate |
| Based on norm | ISO 5599-1 | Max. no. of valve positions | 1 |
| Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
| CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
| Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C 50°C | Product weight | 660g |
| Pneumatic connection 1 | 1/2 NPT | Pneumatic connection 3 | 1/2 NPT |
| Pneumatic connection 5 | 1/2 NPT | Exhaust plate material | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Supply plate material | Die-cast aluminum |
| Manufacturer ID | 8037656 |
Specifications may be subject to change without notice
