vabf-s1-1-p1a3-g38
Product ID:11648
Updated: 2026/4/3
Key Features
- 1Meet ISO 5599-1 standard for broad system compatibility. 2、Deliver a high nominal flow rate of 1300 l/min. 3、Operate reliably from -0.9 to 10 bar pressure. 4、Construct with durable, corrosion-resistant die-cast aluminum. 5、Mount easily on manifold or individual sub-bases.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 42mm | Based on norm | ISO 5599-1 |
| Mounting position | Any | Pneumatic vertical stacking | Alternative pressure supply for 1 |

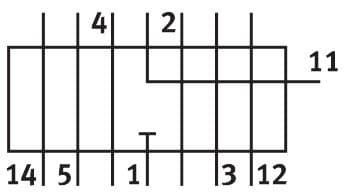

| Symbol | 00991883 | Operating pressure | -0.9bar 10bar |
| Standard nominal flow rate | 1300l/min | CE marking (see declaration of conformity) | as per EU simple pressure vessel directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 340g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Manufacturer ID | 549100 |
Specifications may be subject to change without notice
