vabf-s1-1-r1c2-c-6
Product ID:11301
Updated: 2026/4/3
Key Features
- 1Ensure compatibility with VTSA valve terminals using ISO 5599-1 standard port pattern. 2、Regulate pressure precisely from 0.5 to 6 bar for diverse applications. 3、Install flexibly in any position with a compact 42 mm width design. 4、Maintain constant output pressure with secondary exhaust for system stability. 5、Operate reliably with ISO8573-1 air quality and CRC 0 corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 42mm | Based on norm | ISO 5599-1 |
| Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 1 |

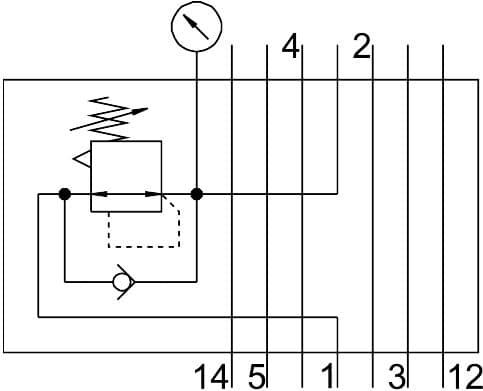

| Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00992227 |
| Optional pressure gauge | Possible | Pressure regulation range MPa | 0.05MPa 0.6MPa |
| Pressure regulation range | 0.5bar 6bar | Pressure regulation range psi | 7.25psi 87psi |
| Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
| Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 640g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
| Note on materials | RoHS-compliant | Material of operator panel | PA |
| Controller housing material | Die-cast aluminum | Manufacturer ID | 546817 |
Specifications may be subject to change without notice
