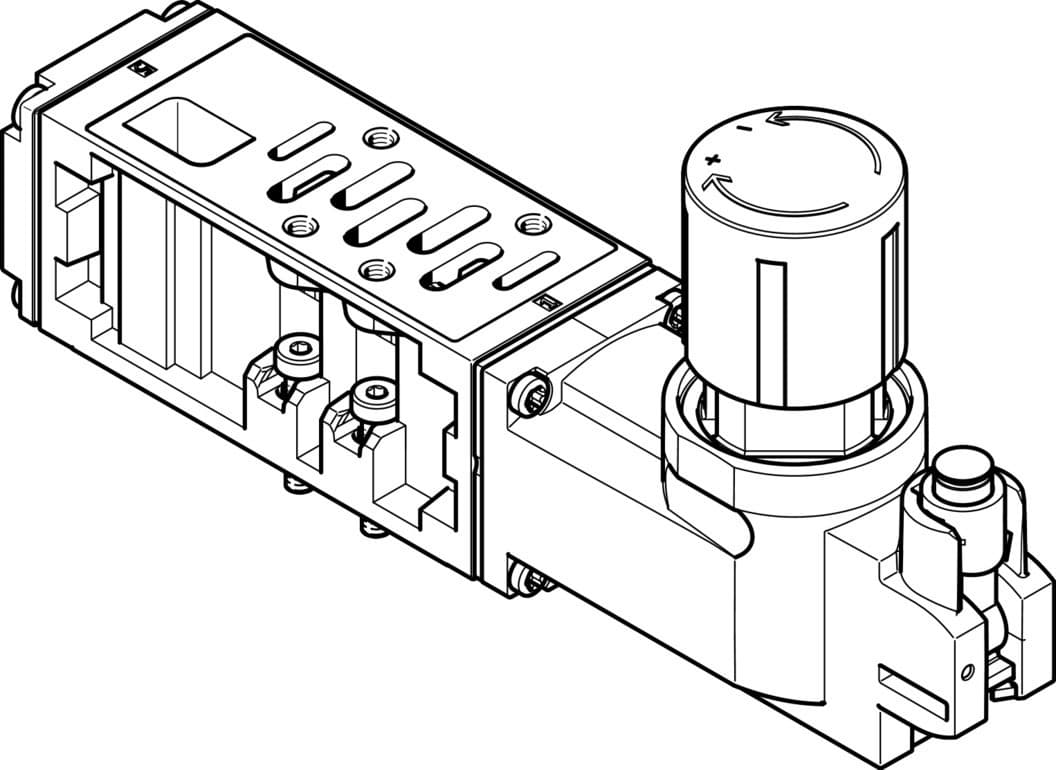

vabf-s1-2-r2c2-c-10
Product ID:12193
Updated: 2026/4/4
Key Features
- 1Ensure precise 1-10 bar pressure control for consistent system performance. 2、Install vertically to save panel space and simplify integration. 3、Achieve reliable operation with ISO 5599-1 and ISO 8573-1 compliance. 4、Monitor pressure easily with an optional gauge for optimal efficiency. 5、Extend service life up to 24 million cycles to cut maintenance costs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 54mm | Based on norm | ISO 5599-1 |
| Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 2 |
| Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00991581 |
| Optional pressure gauge | Possible | Pressure regulation range MPa | 0.1MPa 1MPa |
| Pressure regulation range | 1bar 10bar | Pressure regulation range psi | 14.5psi 145psi |
| Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
| Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 1230g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
| Note on materials | RoHS-compliant | Material of operator panel | PA |
| Controller housing material | Die-cast aluminum | Manufacturer ID | 555760 |
Specifications may be subject to change without notice
