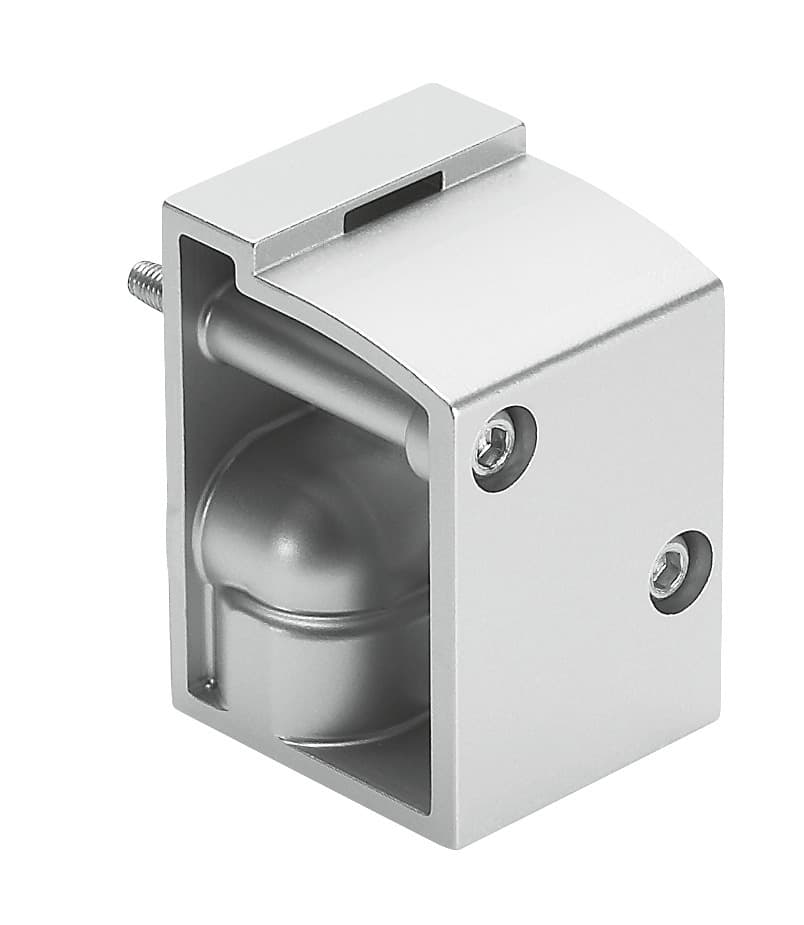

vabf-s2-1-a1g2-n38
Product ID:11079
Updated: 2026/4/3
Key Features
- 1Connect valve terminals at a 90° angle for organized pneumatic systems. 2、Construct from die-cast aluminum for high corrosion resistance and durability. 3、Ensure wide compatibility with a 42 mm width per ISO 5599-2 standard. 4、Handle versatile conditions with a -0.9 to 10 bar operating pressure range. 5、Rely on IP65 protection for performance in diverse industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 42mm | Based on norm | ISO 5599-2 |
| Mounting position | Any | Operating pressure | -0.9bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
| Product weight | 176g | Type of mounting | With through-hole |
| Housing material | Die-cast aluminum | Manufacturer ID | 546098 |
Specifications may be subject to change without notice
