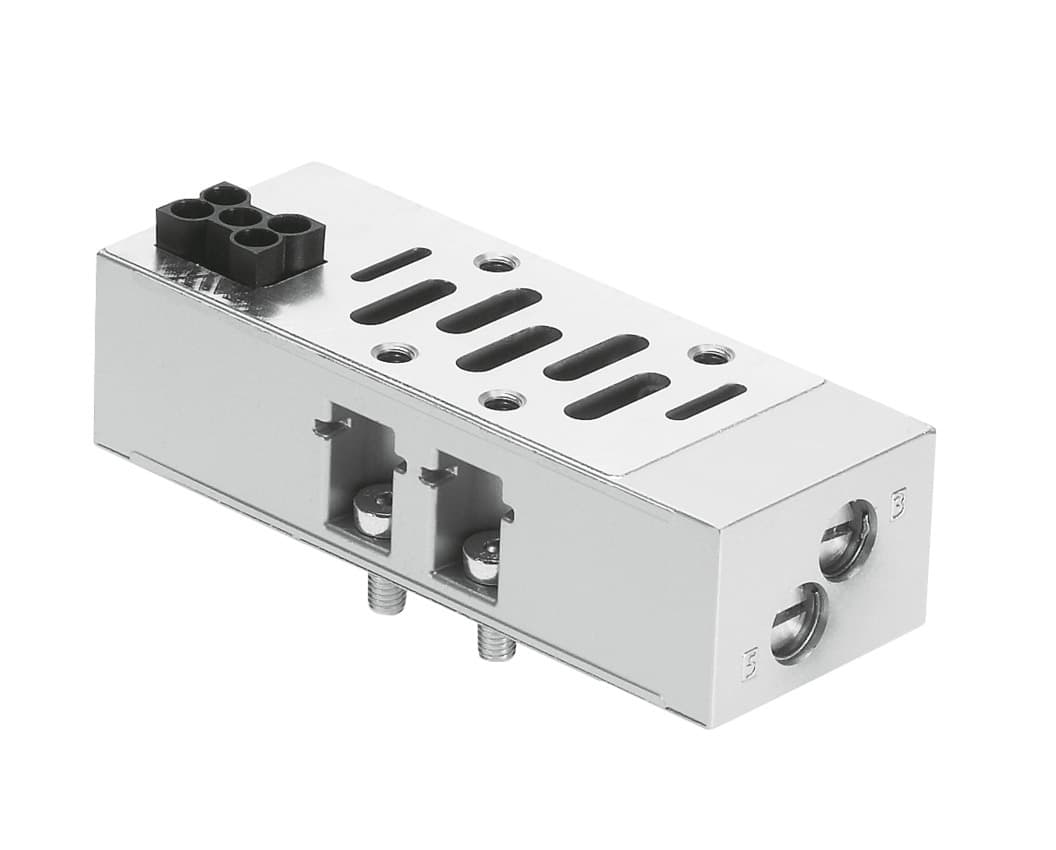

vabf-s2-1-f1b1-c
Product ID:11076
Updated: 2026/4/3
Key Features
- 1Restrict exhaust ports 3 and 5 on VTSA valve terminals for precise pneumatic control. 2、Operate reliably within a wide pressure range from -0.9 to 10 bar. 3、Deliver a high nominal flow rate of 1,100 l/min based on ISO 5599-2. 4、Mount in any position and use with lubricated air for design flexibility. 5、Feature CRC 0 and IP65/NEMA 4 ratings for harsh environment durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 43mm | Based on norm | ISO 5599-2 |
| Mounting position | Any | Pneumatic vertical stacking | Throttle plate exhaust air flow control |
| Symbol | 00991467 | Operating pressure | -0.9bar 10bar |
| Standard nominal flow rate | 1100l/min | CE marking (see declaration of conformity) | as per EU simple pressure vessel directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 220g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Manufacturer ID | 546095 |
Specifications may be subject to change without notice
