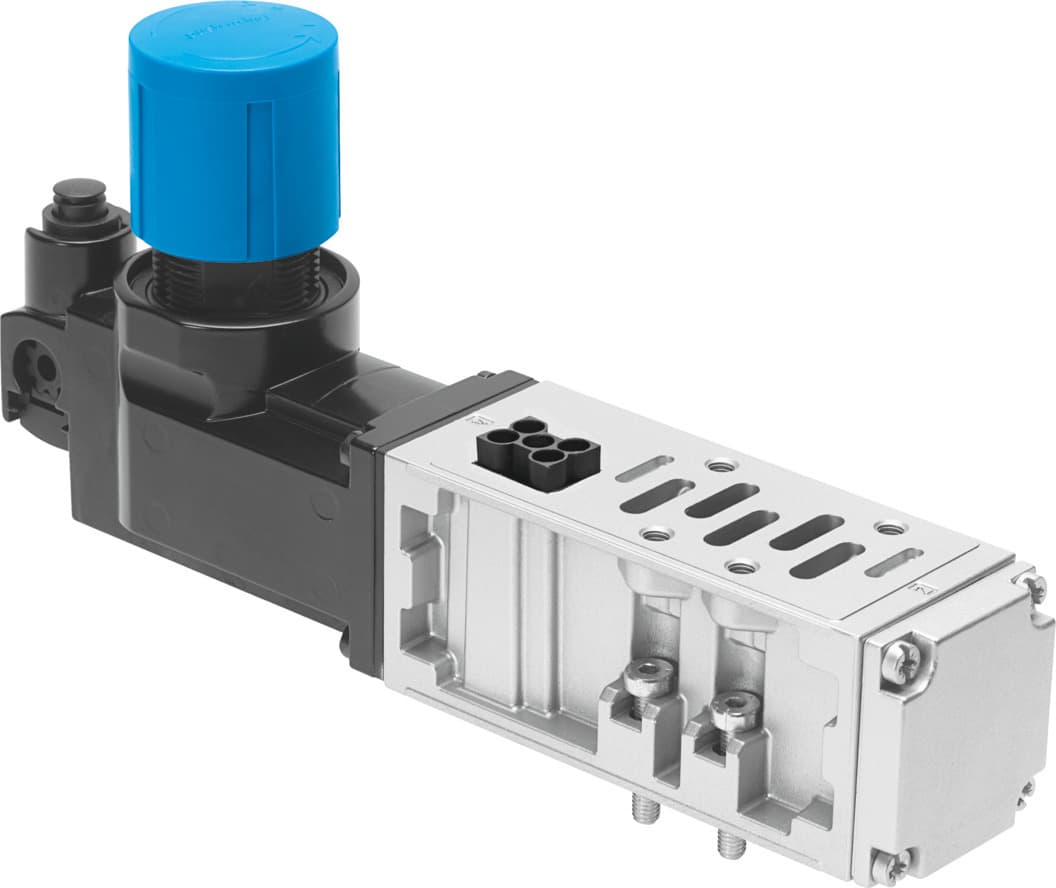

vabf-s2-1-r3c2-c-6
Product ID:11068
Updated: 2026/4/3
Key Features
- 1Maintain constant outlet pressure for precise pneumatic control. 2、Ensure efficient operation with integrated secondary venting. 3、Operate with compressed air meeting ISO 8573-1:2010 standards. 4、Rely on robust die-cast aluminum housing for durability. 5、Mount flexibly on manifold or individual sub-bases.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 42mm | Based on norm | ISO 5599-2 |
| Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 4 |
| Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00991579 |
| Optional pressure gauge | Possible | Pressure regulation range MPa | 0.1MPa 0.6MPa |
| Pressure regulation range | 1bar 6bar | Pressure regulation range psi | 14.5psi 87psi |
| Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
| Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 640g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
| Note on materials | RoHS-compliant | Material of operator panel | PA |
| Controller housing material | Die-cast aluminum | Manufacturer ID | 546085 |
Specifications may be subject to change without notice
