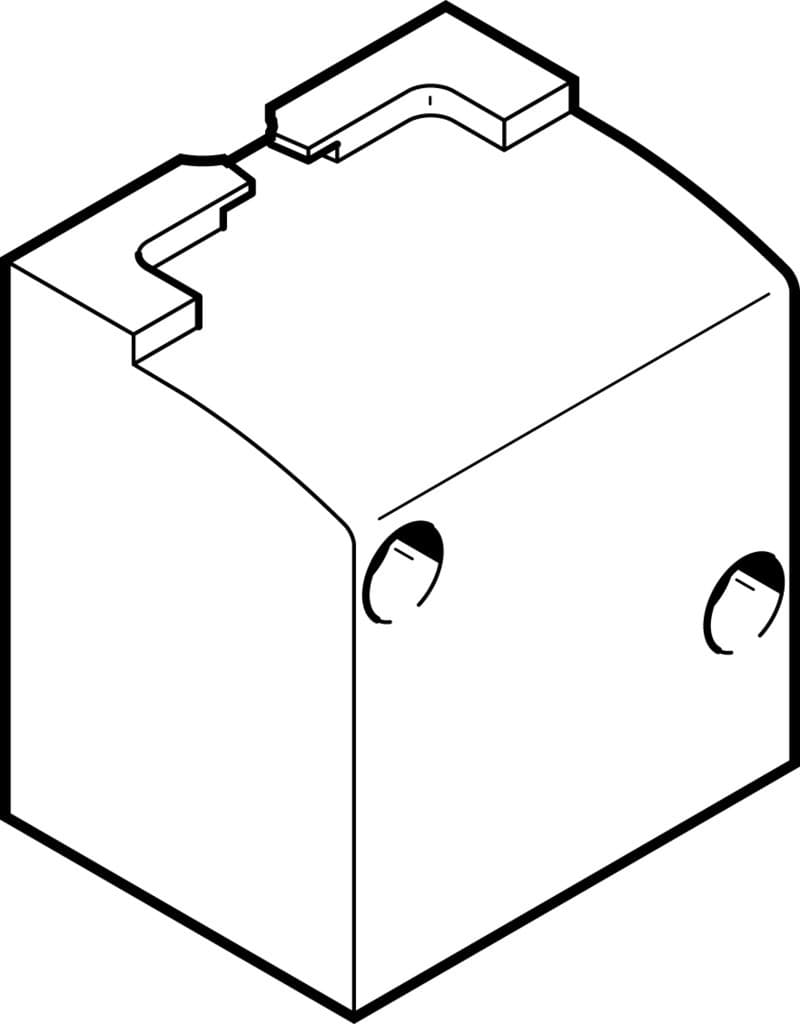

vabf-s2-2-a1g2-n12
Product ID:12189
Updated: 2026/7/15
Key Features
- 1Ensure precise fit with a 58.1 mm construction width.
- 2Gain flexible installation via optional mounting positions.
- 3Operate reliably from -0.09 to 1 MPa pressure.
- 4Meet ISO 5599-2 and VDMA standards for compliance.
- 5Protect against harsh conditions with IP65/NEMA 4 rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 58.1mm | Based on norm | ISO 5599-2 |
| Mounting position | Any | Operating pressure | -0.9bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
| Product weight | 359g | Type of mounting | With through-hole |
| Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 555703 |
Specifications may be subject to change without notice
