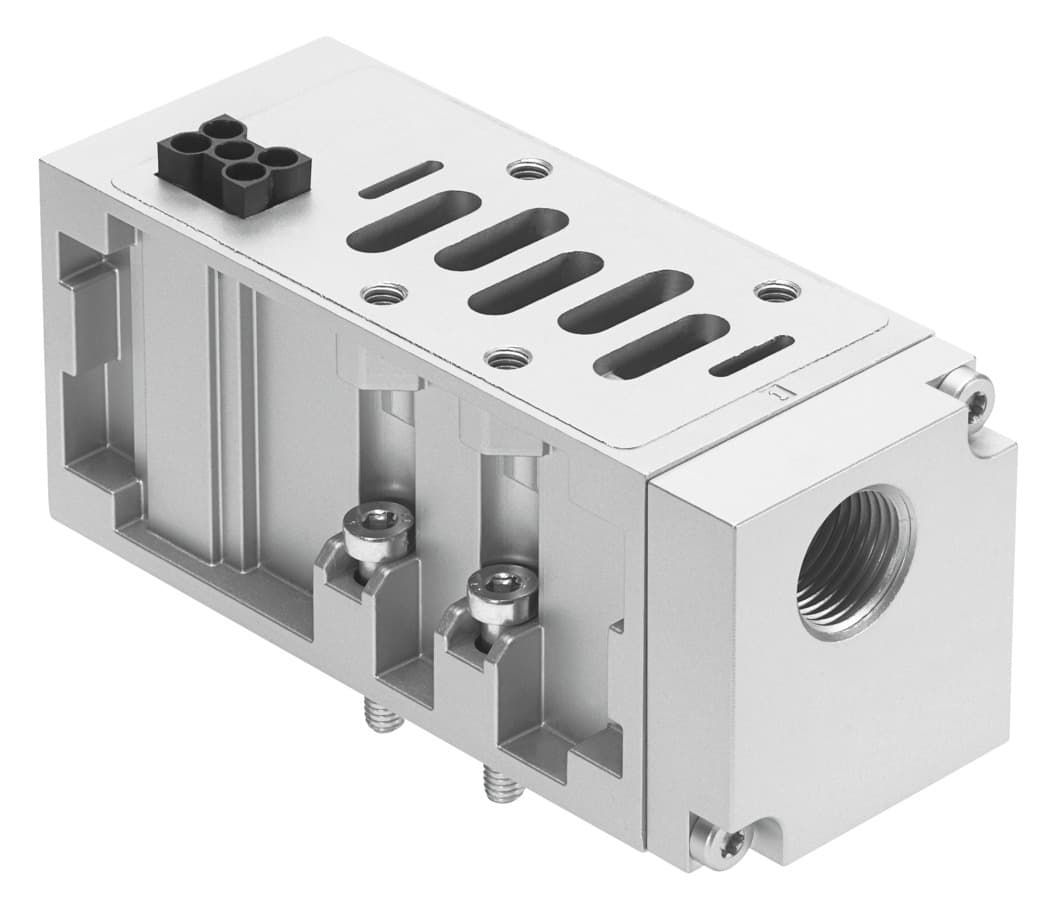

vabf-s2-2-p1a14-n12
Product ID:14841
Updated: 2026/4/3
Key Features
- 1Maximize flow with a 2,800 l/min nominal rate. 2、Install versatilely in any vertical pneumatic stack. 3、Configure flexibly using alternative pressure ports 1 and 14. 4、Ensure durability with CRC 0 and IP65/NEMA 4 protection. 5、Save space via a compact 54 mm width design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 54mm | Based on norm | ISO 5599-2 |
| Mounting position | Any | Pneumatic vertical stacking | Alternative pressure supply for 1 and 14 |
| Symbol | 00992919 | Operating pressure | -0.9bar 10bar |
| Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
| Inlet pressure 1 psi | 7.25psi 145psi | Standard nominal flow rate | 2800l/min |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
| Product weight | 605g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Manufacturer ID | 8000550 |
Specifications may be subject to change without notice
