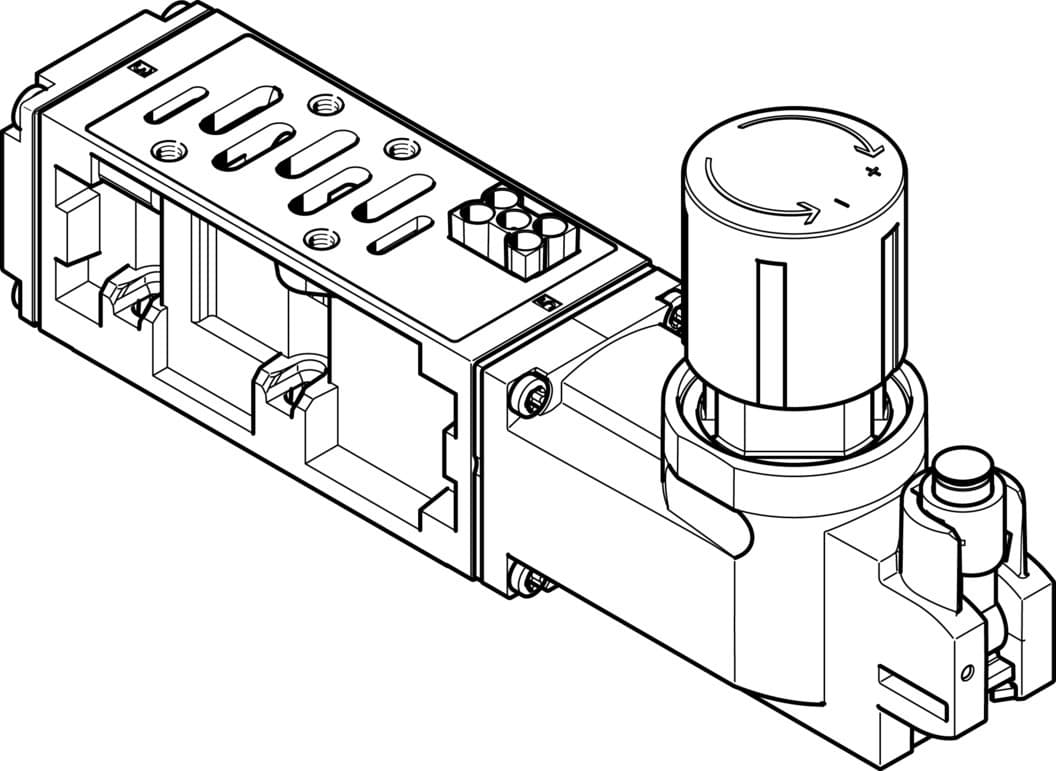

vabf-s2-2-r7c2-c-6
Product ID:12210
Updated: 2026/4/4
Key Features
- 1Ensure consistent pressure output for reliable pneumatic system operation. 2、Regulate pressure from 0.5 to 6 bar for versatile application needs. 3、Achieve 24 million cycles service life per ISO 19973 reliability standards. 4、Mount vertically for flexible installation on manifold sub-bases. 5、Utilize corrosion-resistant, RoHS-compliant materials for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 54mm | Based on norm | ISO 5599-2 |
| Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 4 reversible |
| Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00991945 |
| Optional pressure gauge | Possible | Pressure regulation range MPa | 0.05MPa 6MPa |
| Pressure regulation range | 0.5bar 60bar | Pressure regulation range psi | 7.25psi 870psi |
| Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
| Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 1230g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
| Note on materials | RoHS-compliant | Material of operator panel | PA |
| Controller housing material | Die-cast aluminum | Manufacturer ID | 555783 |
Specifications may be subject to change without notice
