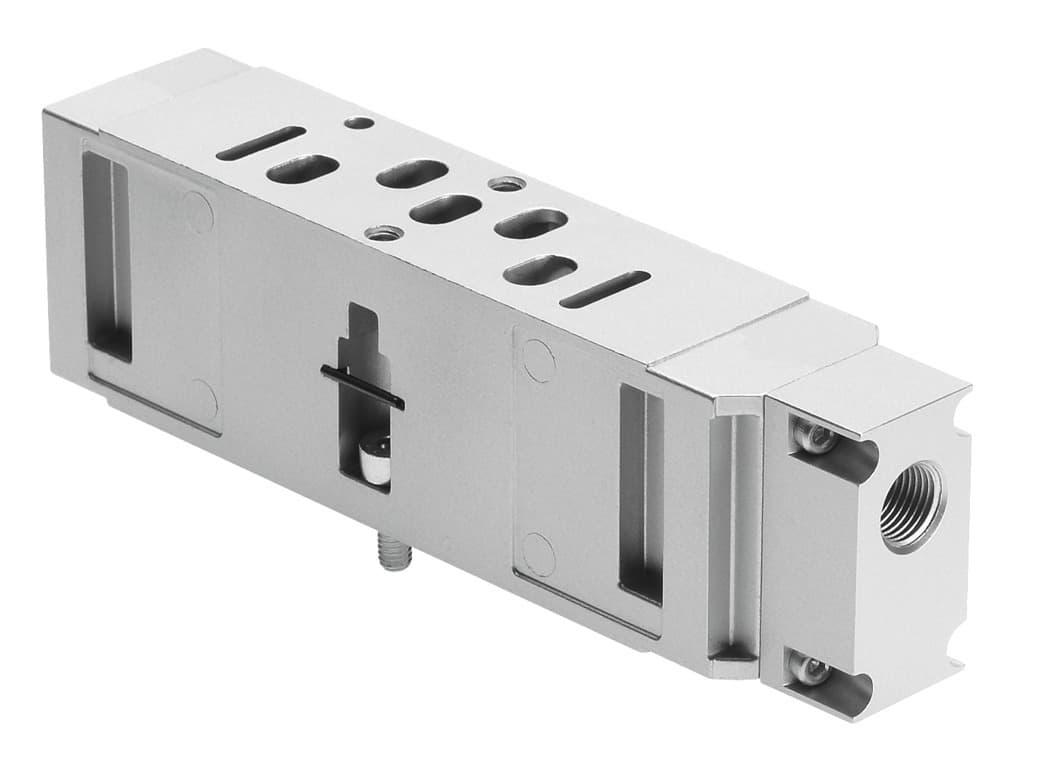

vabf-s3-1-p1a3-g14
Product ID:11060
Updated: 2026/7/4
Key Features
- 1Comply with ISO 15407-1 standard in a 26 mm width.
- 2Mount vertically or in optional positions for flexible linkage.
- 3Deliver a standard nominal flow rate of 1000 l/min.
- 4Protect with die-cast aluminum housing rated IP65.
- 5Operate with lubrication from -0.9 to 10 bar pressure.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-1 |
| Mounting position | Any | Pneumatic vertical stacking | Alternative pressure supply for 1 |
| Symbol | 00991883 | Operating pressure | -0.9bar 10bar |
| Standard nominal flow rate | 1000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 201g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Manufacturer ID | 544434 |
Specifications may be subject to change without notice
