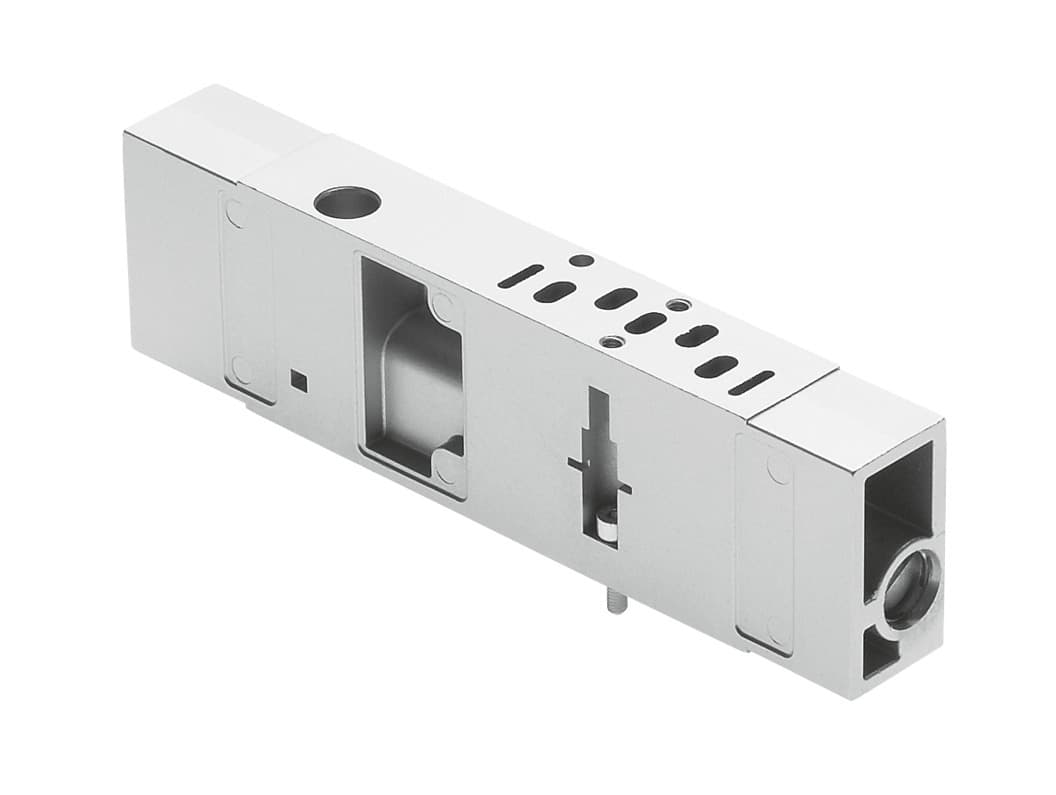

vabf-s3-2-f1b1-c
Product ID:10986
Updated: 2026/7/4
Key Features
- 1Control exhaust air flow precisely for optimal pneumatic system performance.
- 2Install in any mounting position for versatile vertical stacking configurations.
- 3Meet ISO 15407-1 standards and RoHS environmental regulations.
- 4Utilize a durable, corrosion-resistant die-cast aluminum housing.
- 5Operate with compressed air from -0.9 to 10 bar for wide application versatility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 18mm | Based on norm | ISO 15407-1 |
| Mounting position | Any | Pneumatic vertical stacking | Throttle plate exhaust air flow control |
| Symbol | 00991467 | Operating pressure | -0.9bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
| Product weight | 228g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Manufacturer ID | 543603 |
Specifications may be subject to change without notice
