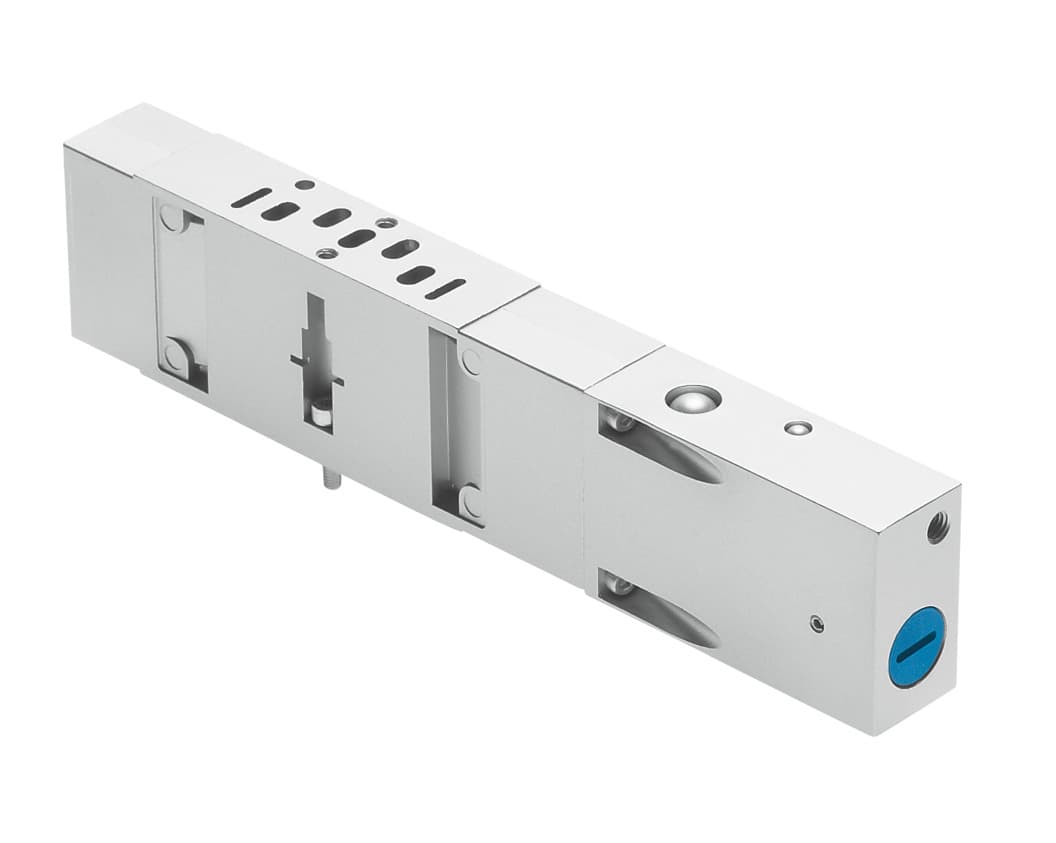

vabf-s3-2-l1d1-c
Product ID:10984
Updated: 2026/7/4
Key Features
- 1Adhere to ISO 15407-1 standard with an 18 mm construction width.
- 2Enable flexible installation on manifold or individual sub-bases.
- 3Optimize airflow with a 400 l/min standard nominal flow rate.
- 4Operate with compressed air per ISO 8573-1:2010 for demanding applications.
- 5Ensure durability with corrosion resistance class 0 and LABS conformity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 18mm | Based on norm | ISO 15407-1 |
| Mounting position | Any | Pneumatic vertical stacking | Shut-off for 1 |
| Symbol | 00991889 | Operating pressure | -0.9bar 10bar |
| Standard nominal flow rate | 400l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 212g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Manufacturer ID | 543601 |
Specifications may be subject to change without notice
