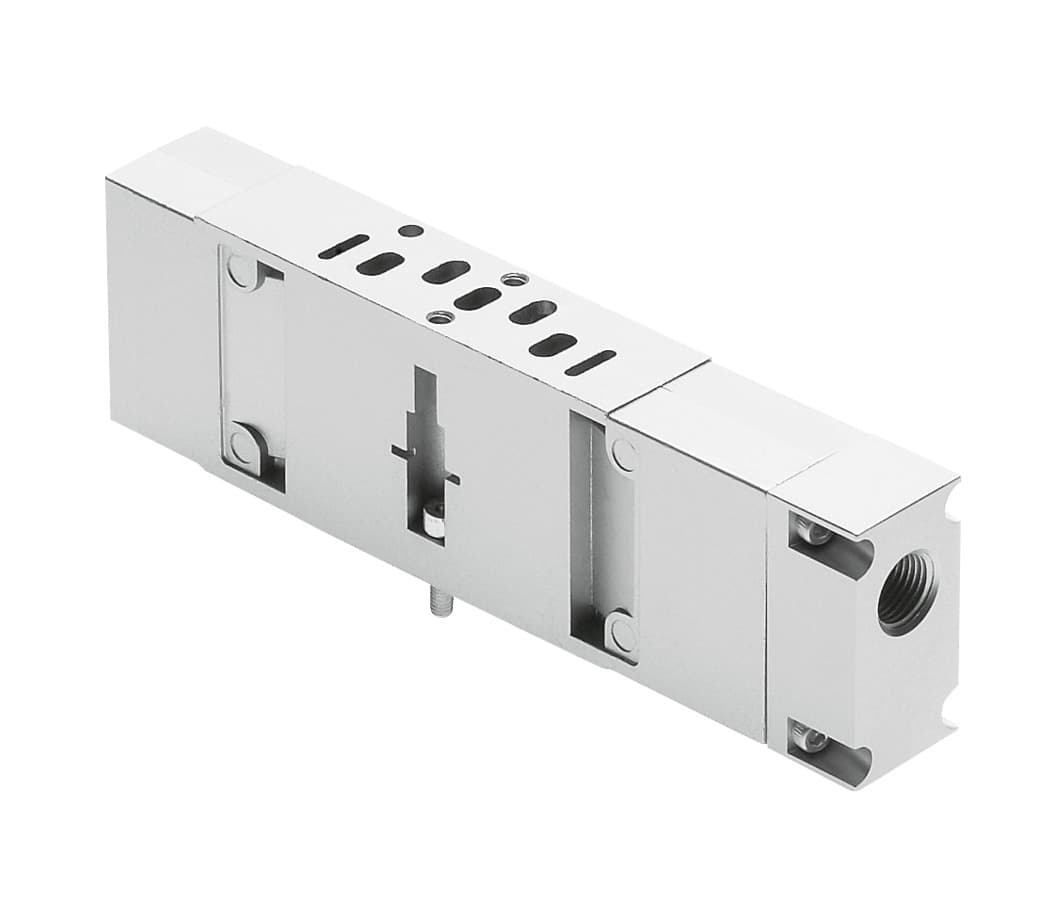

vabf-s3-2-p1a3-g18
Product ID:11061
Updated: 2026/4/3
Key Features
- 1Ensure precise fitment with an 18mm construction width. 2、Guarantee standard compatibility via ISO 15407-1 compliance. 3、Select optional mounting positions for versatile installation. 4、Provide an alternative compressed air supply for one vertical pneumatic linkage. 5、Achieve reliable operation in various environments with IP65 and NEMA 4 protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 18mm | Based on norm | ISO 15407-1 |
| Mounting position | Any | Pneumatic vertical stacking | Alternative pressure supply for 1 |
| Symbol | 00991883 | Operating pressure | -0.9bar 10bar |
| Standard nominal flow rate | 500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 146g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Manufacturer ID | 544435 |
Specifications may be subject to change without notice
