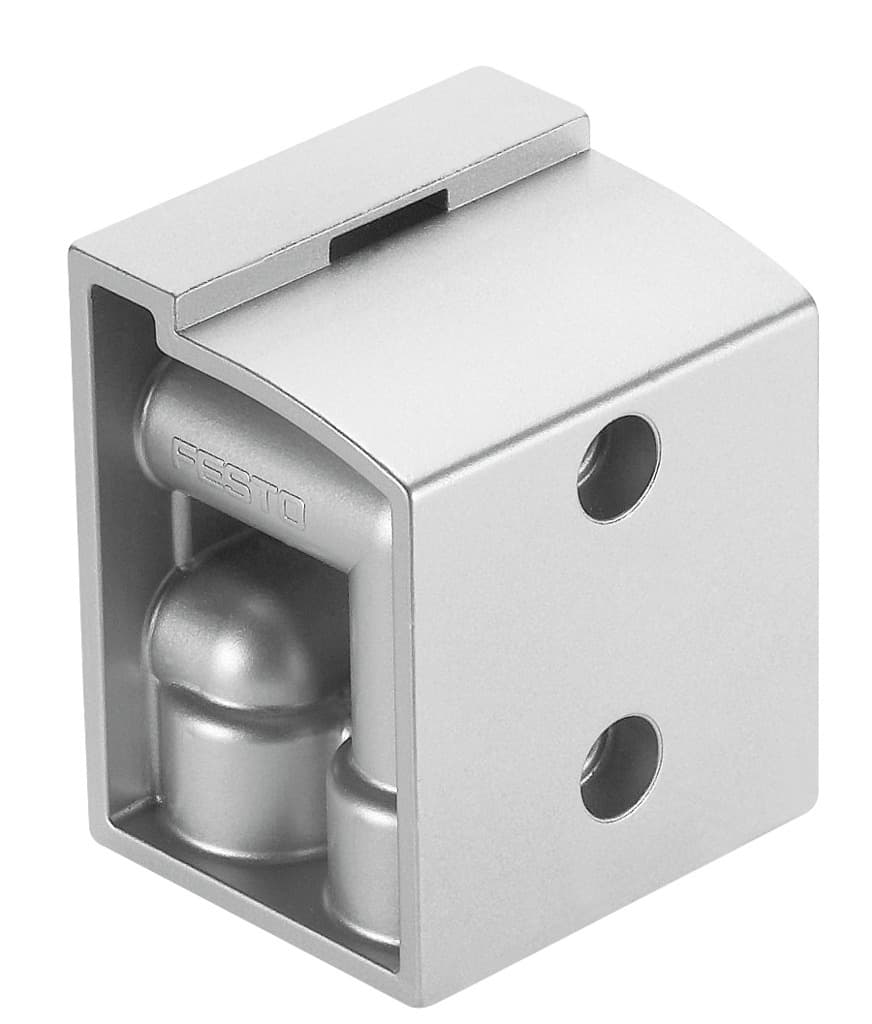

vabf-s4-1-a2g2-n14
Product ID:10502
Updated: 2026/7/4
Key Features
- 1Fit any mounting position for versatile pneumatic system setup.
- 2Operate within a wide pressure range of -0.09 to 1 MPa.
- 3Construct from durable, corrosion-resistant die-cast aluminum.
- 4Use with ISO 8573-1:2010 compressed air and oil lubrication.
- 5Withstand harsh environments with IP65 and NEMA 4 ratings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Operating pressure | -0.9bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
| Product weight | 217g | Type of mounting | With through-hole |
| Housing material | Die-cast aluminum | Manufacturer ID | 539722 |
Specifications may be subject to change without notice
