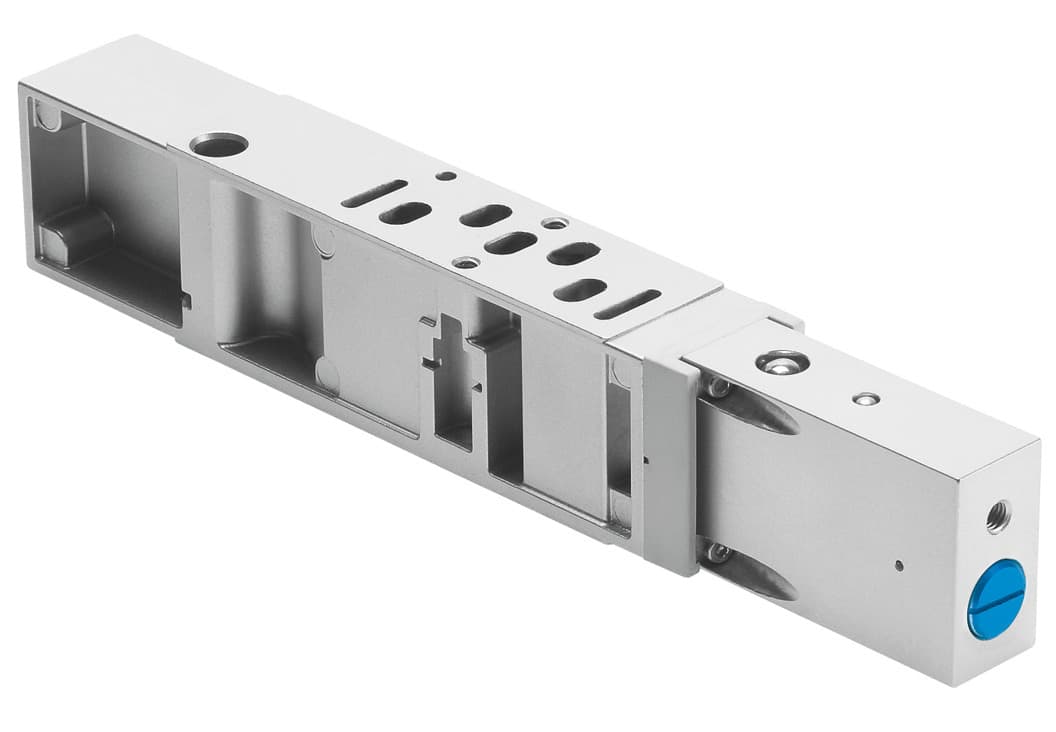

vabf-s4-1-l1d1-c
Product ID:10855
Updated: 2026/7/4
Key Features
- 1Ensure precise flow control with a 26 mm construction width per ISO 15407-2.
- 2Install flexibly on manifold or individual sub-bases.
- 3Handle pressures from 1 to 10 MPa (10 bar) reliably.
- 4Operate with clean air meeting ISO 8573-1:2010 standards.
- 5Resist corrosion with die-cast aluminum and IP65/NEMA 4 rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Symbol | 00995427 |
| Operating pressure | 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 273g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Housing material | Die-cast aluminum | Manufacturer ID | 542885 |
Specifications may be subject to change without notice
