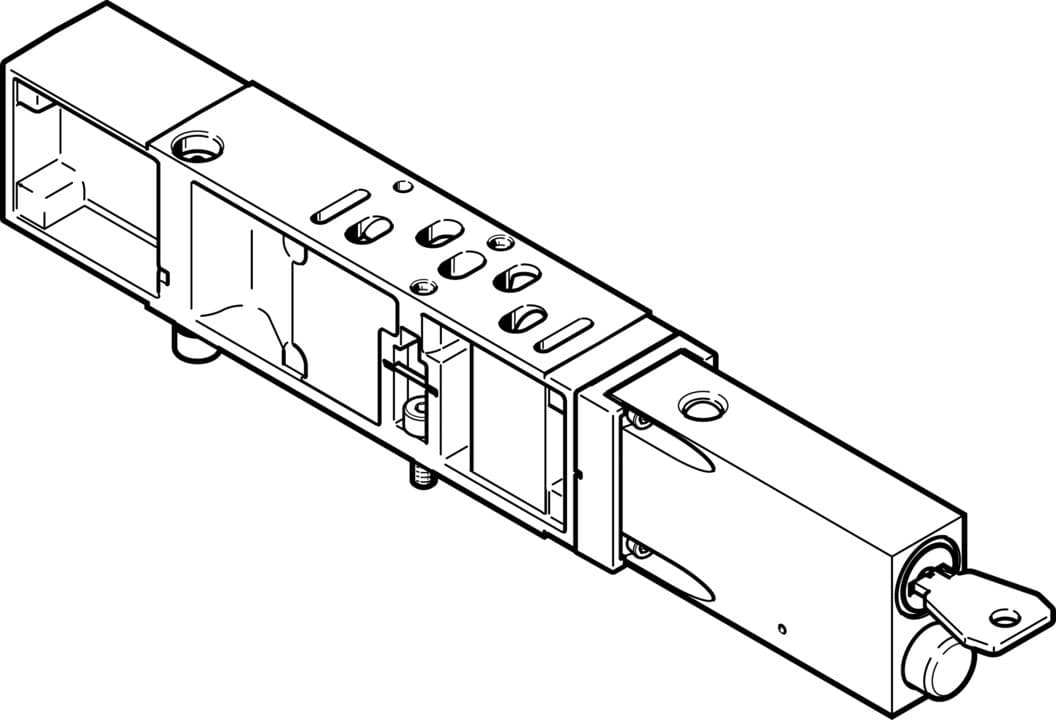

vabf-s4-1-l1d2-c
Product ID:14846
Updated: 2026/4/3
Key Features
- 1Meet ISO 15407-2 standards for precision and reliability. 2、Choose optional mounting positions for flexible installation. 3、Ensure CE compliance for EU and UK regulations. 4、Operate with compressed air meeting ISO 8573-1:2010. 5、Utilize die-cast aluminium for durable construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Symbol | 00995593 |
| Operating pressure | 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 290g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Manufacturer ID | 8001179 |
Specifications may be subject to change without notice
