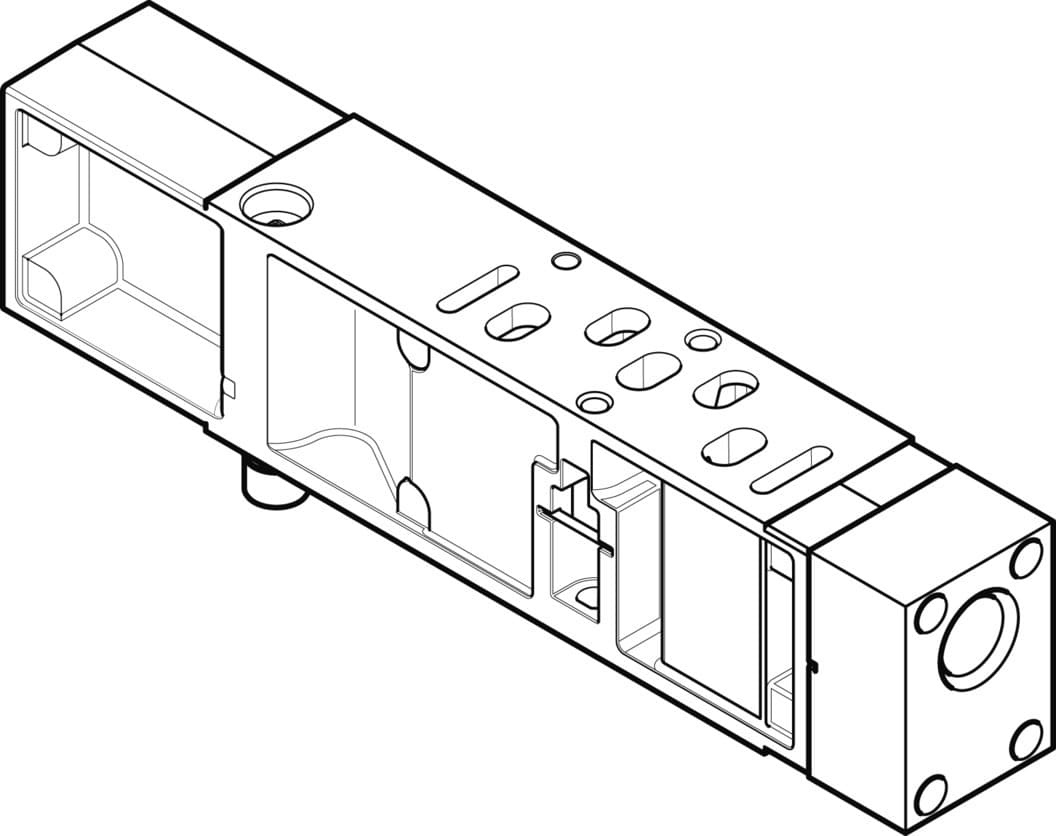

vabf-s4-1-p1a3-g14
Product ID:10558
Updated: 2026/7/4
Key Features
- 1Adhere to ISO 15407-2 standard with a 26 mm construction width.
- 2Offer flexible optional mounting positions for easy integration.
- 3Feature corrosion resistance class 0 and LABS (PWIS) conformity.
- 4Provide IP65/NEMA 4 protection against dust and water ingress.
- 5Support lubricated operation with compressed air per ISO 8573-1.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Symbol | 00991883 |
| Operating pressure | 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 191g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Housing material | Die-cast aluminum | Manufacturer ID | 540171 |
Specifications may be subject to change without notice
