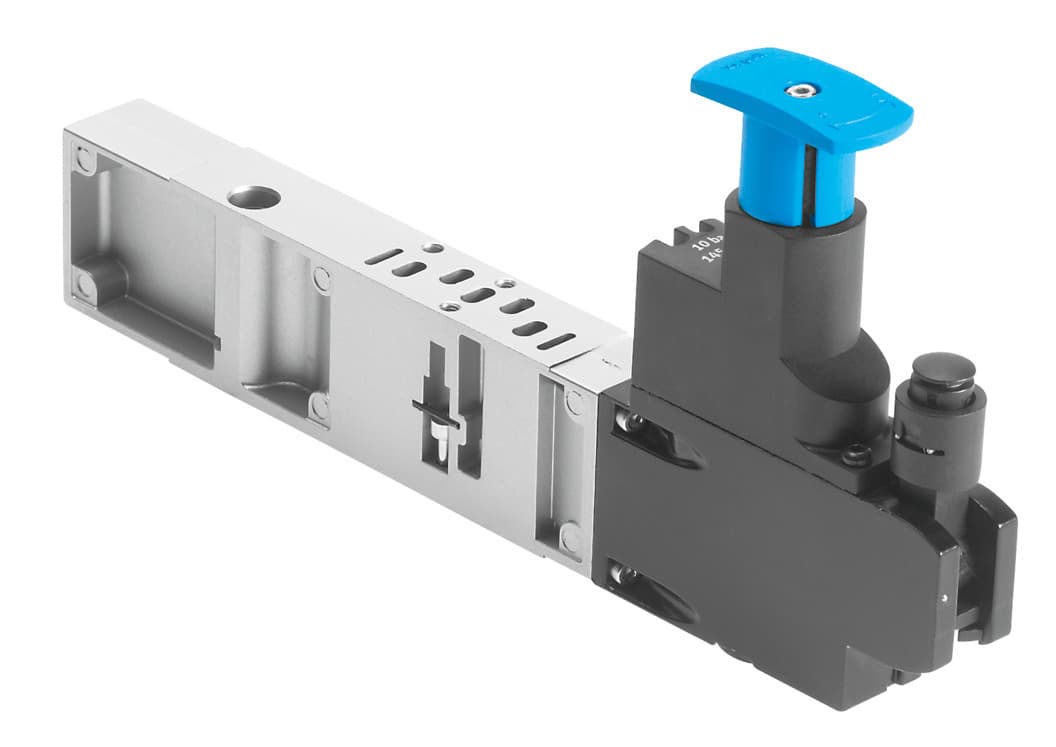

vabf-s4-1-r1c2-c-6
Product ID:10539
Updated: 2026/4/3
Key Features
- 1Maintain constant output pressure for consistent pneumatic system performance. 2、Mount arbitrarily in any position for flexible compressed air system design. 3、Operate with lubricated air as required, featuring corrosion resistance class CRC 0. 4、Achieve IP65/NEMA 4 protection against dust and water ingress. 5、Install on manifold or individual sub-bases with pressure gauge connection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Controller function | Outlet pressure constant With secondary exhausting |
| Symbol | 00992227 | Optional pressure gauge | Possible |
| Operating pressure | 6bar | Pressure regulation range MPa | 0.05MPa 0.6MPa |
| Pressure regulation range | 0.5bar 6bar | Pressure regulation range psi | 7.25psi 87psi |
| Inlet pressure 1 | 0.5bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 402g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Pressure gauge connection | With retaining clamp | Material of operator panel | PA |
| Controller housing material | Die-cast aluminum | Manufacturer ID | 540152 |
Specifications may be subject to change without notice
