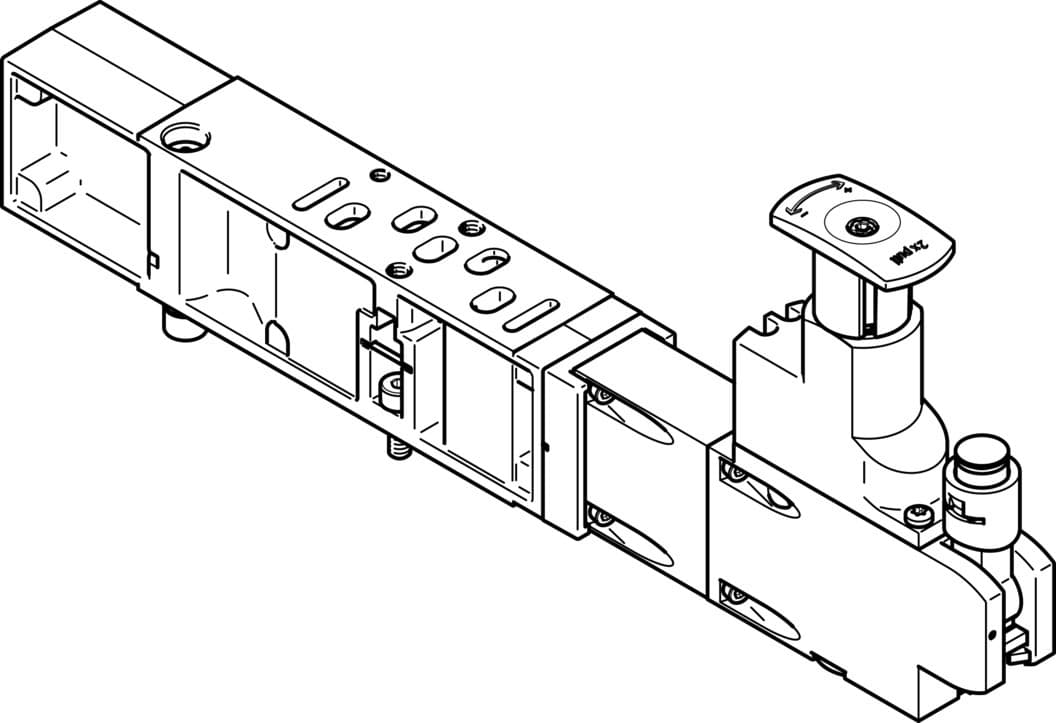

vabf-s4-1-r1c2-c-6e
Product ID:11682
Updated: 2026/4/3
Key Features
- 1Ensure consistent outlet pressure for precise pneumatic control. 2、Mount in any position for flexible system design. 3、Enhance efficiency with secondary exhausting functionality. 4、Meet ISO 15407-2 standards for reliable performance. 5、Resist corrosion and environmental stress with CRC 0 and IP65.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Controller function | Outlet pressure constant With secondary exhausting |
| Symbol | 00992227 | Optional pressure gauge | Possible |
| Operating pressure | 6bar | Pressure regulation range MPa | 0.05MPa 0.6MPa |
| Pressure regulation range | 0.5bar 6bar | Pressure regulation range psi | 7.25psi 87psi |
| Inlet pressure 1 | 0.5bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 445g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Pressure gauge connection | With retaining clamp | Material of operator panel | PA |
| Controller housing material | Die-cast aluminum | Manufacturer ID | 549876 |
Specifications may be subject to change without notice
