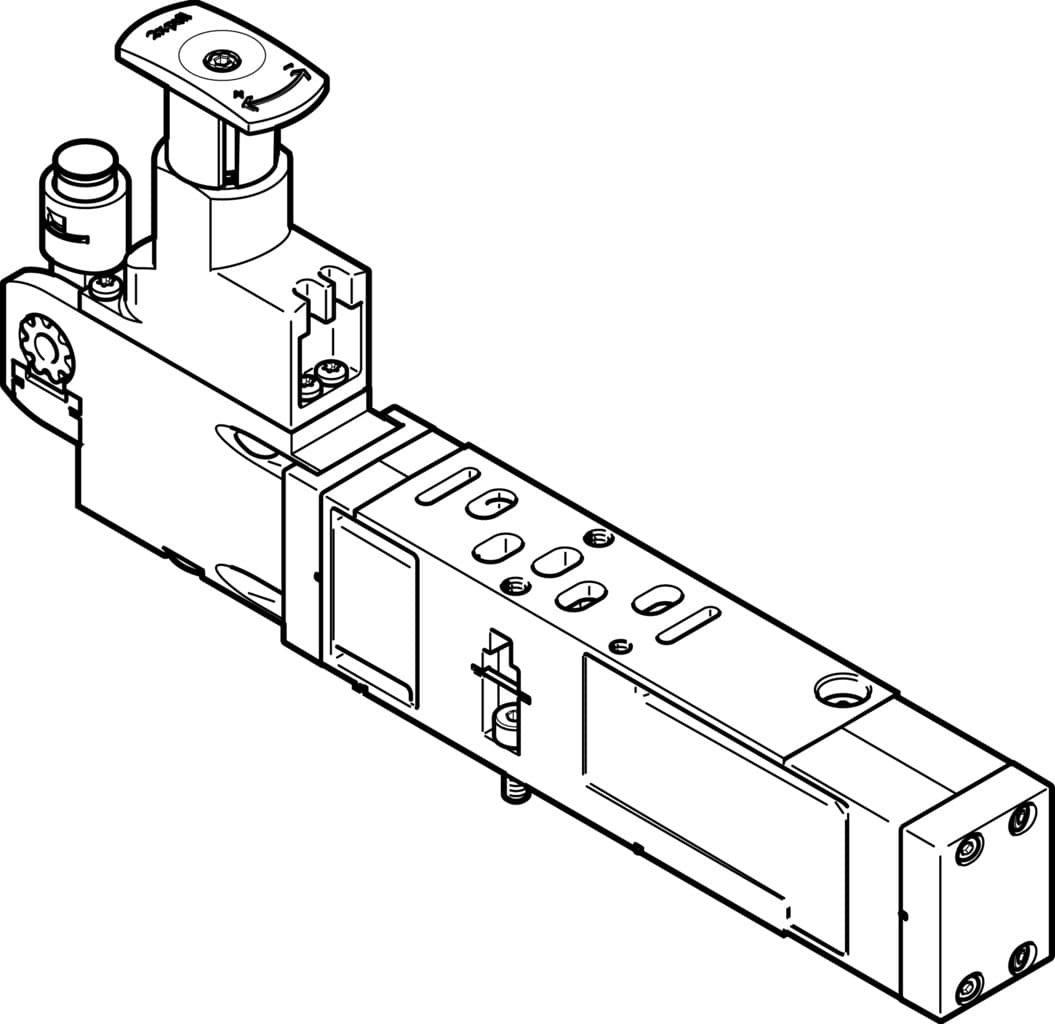

vabf-s4-1-r2c2-c-10
Product ID:10549
Updated: 2026/4/3
Key Features
- 1Provide precise 10-bar pressure regulation for consistent performance. 2、Ensure durability with a die-cast aluminum housing and IP65 rating. 3、Simplify installation in valve terminals with a compact 26-mm width. 4、Maintain stable output pressure with efficient secondary venting. 5、Adhere to ISO 15407-2 standards for reliable pneumatic operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Controller function | Outlet pressure constant With secondary exhausting |
| Symbol | 00991581 | Optional pressure gauge | Possible |
| Operating pressure | 10bar | Pressure regulation range MPa | 0.2MPa 0.85MPa |
| Pressure regulation range | 2bar 8.5bar | Pressure regulation range psi | 29psi 123.25psi |
| Inlet pressure 1 | 0.5bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 448g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Pressure gauge connection | With retaining clamp | Material of operator panel | PA |
| Controller housing material | Die-cast aluminum | Manufacturer ID | 540162 |
Specifications may be subject to change without notice
