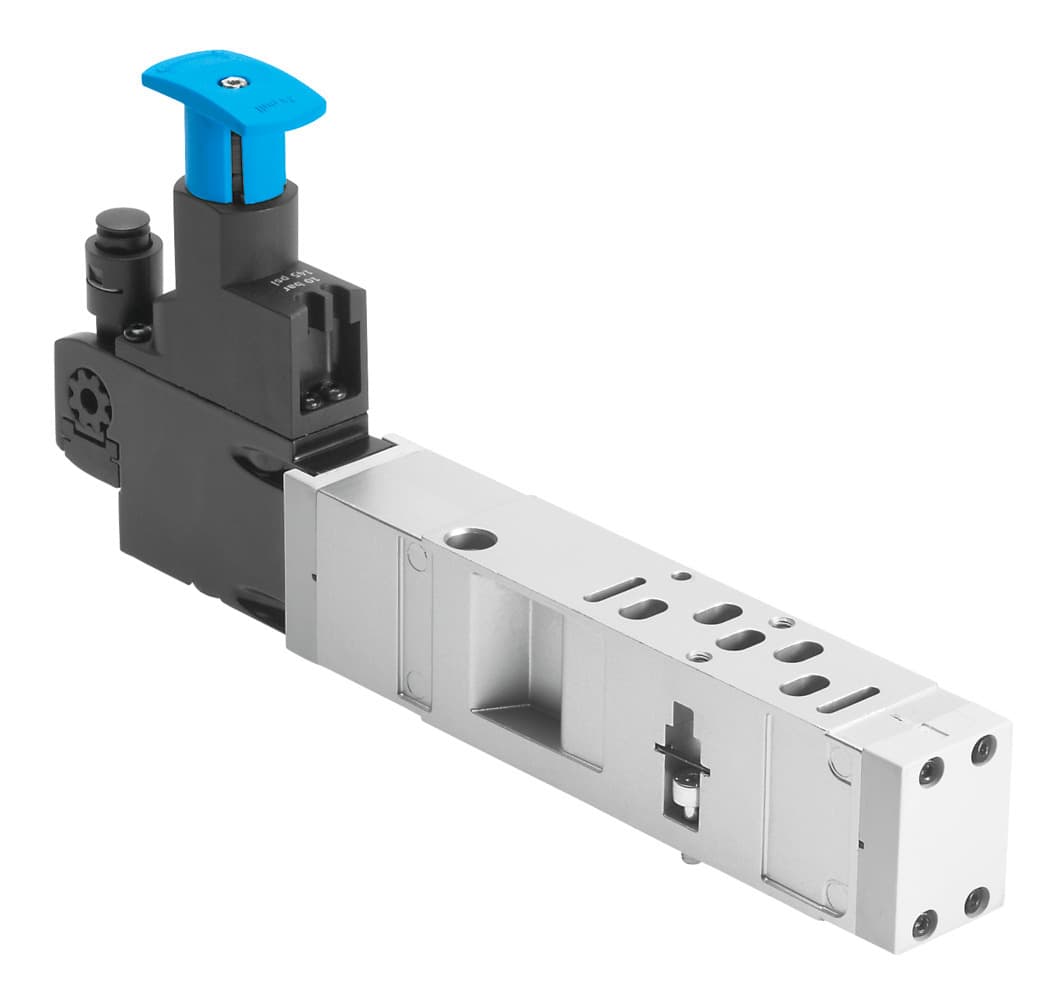

vabf-s4-1-r3c2-c-6
Product ID:10543
Updated: 2026/4/3
Key Features
- 1Ensure constant output pressure with secondary venting for system reliability. 2、Construct to ISO 15407-2 standards for robust and precise performance. 3、Integrate easily into manifold or individual sub-bases with a 26 mm width. 4、Support lubricated operation for smooth performance and extended service life. 5、Withstand harsh environments with IP65 and NEMA 4 protection ratings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Controller function | Outlet pressure constant With secondary exhausting |
| Symbol | 00991579 | Optional pressure gauge | Possible |
| Operating pressure | 6bar | Pressure regulation range MPa | 0.02MPa 0.6MPa |
| Pressure regulation range | 0.2bar 6bar | Pressure regulation range psi | 2.9psi 87psi |
| Inlet pressure 1 | 0.5bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 448g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Pressure gauge connection | With retaining clamp | Material of operator panel | PA |
| Controller housing material | Die-cast aluminum | Manufacturer ID | 540156 |
Specifications may be subject to change without notice
