vabf-s4-1-s
Product ID:13581
Updated: 2026/7/15
Key Features
- 1Generate precise vacuum for reliable gripping and transport.
- 2Control vacuum and ejector pulses for safe workpiece release.
- 3Monitor vacuum levels with high accuracy for process stability.
- 4Manually control the solenoid valve for flexible operation.
- 5Ensure safe operation via galvanic isolation from the valve terminal.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 26mm | Based on norm | ISO 15407-2 |

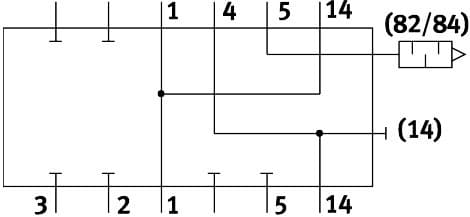

| Mounting position | Any | Symbol | 00992864 |
| Operating pressure | 3bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5°C 50°C | Product weight | 295g |
| Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pilot air port 14 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-2 | Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-2 |
| Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-2 | Note on materials | RoHS-compliant |
| Plate material | Wrought aluminum alloy | Manufacturer ID | 570851 |
Specifications may be subject to change without notice
