vabf-s4-2-l1d2-c
Product ID:14845
Updated: 2026/7/14
Key Features
- 1Mount in any position for flexible system design.
- 2Handle operating pressures up to 10 bar reliably.
- 3Operate effectively from -5°C to +50°C.
- 4Ensure safety with CE marking and EU directive compliance.
- 5Resist corrosion with robust die-cast aluminum construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 18mm | Based on norm | ISO 15407-2 |

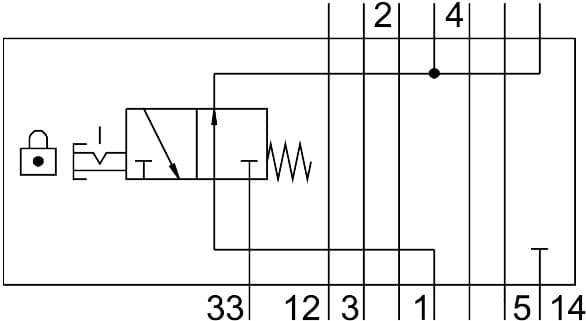

| Mounting position | Any | Symbol | 00995593 |
| Operating pressure | 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 231g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Manufacturer ID | 8001178 |
Specifications may be subject to change without notice
