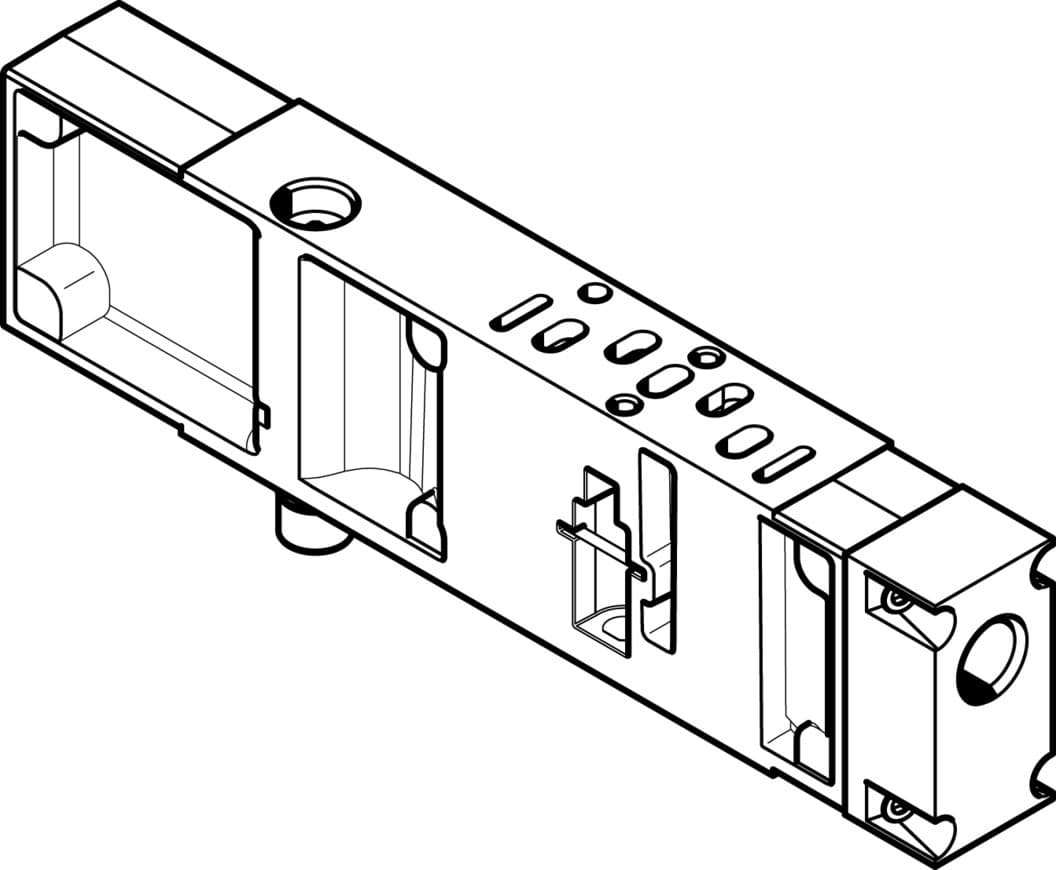

vabf-s4-2-p1a3-n18
Product ID:10561
Updated: 2026/4/3
Key Features
- 1Mount vertically between manifold and VTSA/F valve terminals. 2、Operate within a wide pressure range of -0.9 to 10 bar. 3、Withstand ambient temperatures from -5°C to 50°C reliably. 4、Achieve IP65/NEMA 4 protection against particles and water. 5、Use with lubricated or non-lubricated compressed air systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 18mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Symbol | 00991883 |
| Operating pressure | 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 140g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Pneumatic connection 1 | 1/8 NPT | Housing material | Die-cast aluminum |
| Manufacturer ID | 540174 |
Specifications may be subject to change without notice
