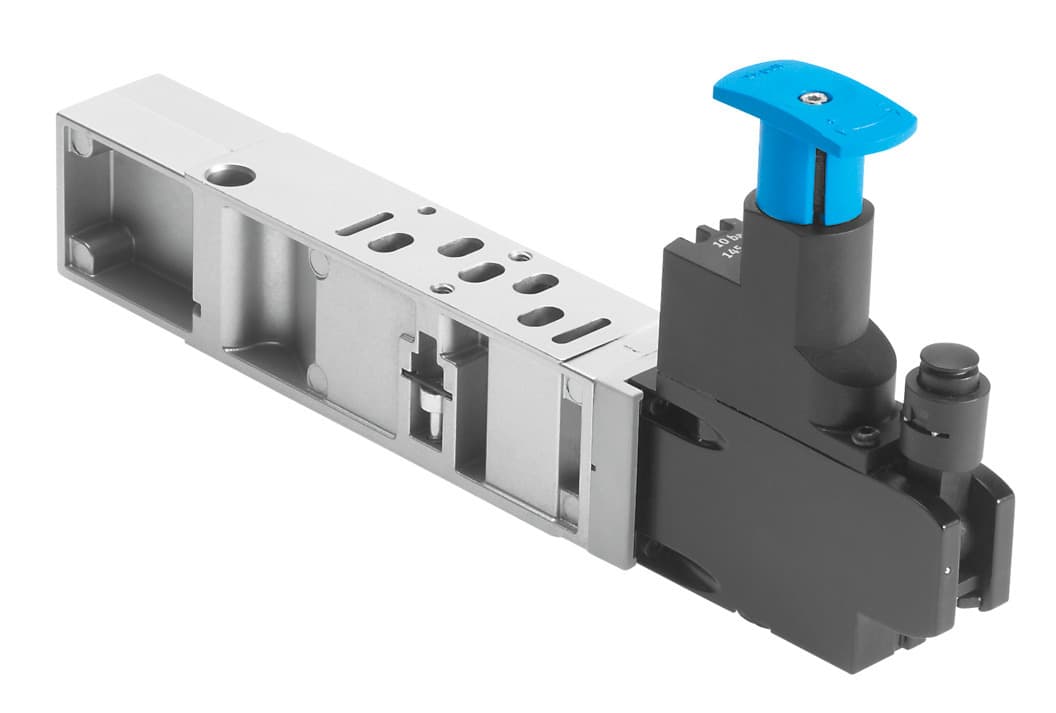

vabf-s4-2-r1c2-c-10
Product ID:10540
Updated: 2026/4/3
Key Features
- 1Meet ISO15407-2 standards for reliable pneumatic control. 2、Regulate pressure from 0.5 to 10 bar for versatility. 3、Install flexibly with an 18mm width and optional mounting. 4、Maintain constant output pressure with secondary venting. 5、Withstand -5°C to 50°C with durable PA and aluminum construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 18mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Controller function | Outlet pressure constant With secondary exhausting |
| Symbol | 00992227 | Optional pressure gauge | Possible |
| Operating pressure | 10bar | Pressure regulation range MPa | 0.05MPa 0.85MPa |
| Pressure regulation range | 0.5bar 8.5bar | Pressure regulation range psi | 7.25psi 123.25psi |
| Inlet pressure 1 | 0.5bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 350g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Pressure gauge connection | With retaining clamp | Material of operator panel | PA |
| Controller housing material | Die-cast aluminum | Manufacturer ID | 540153 |
Specifications may be subject to change without notice
