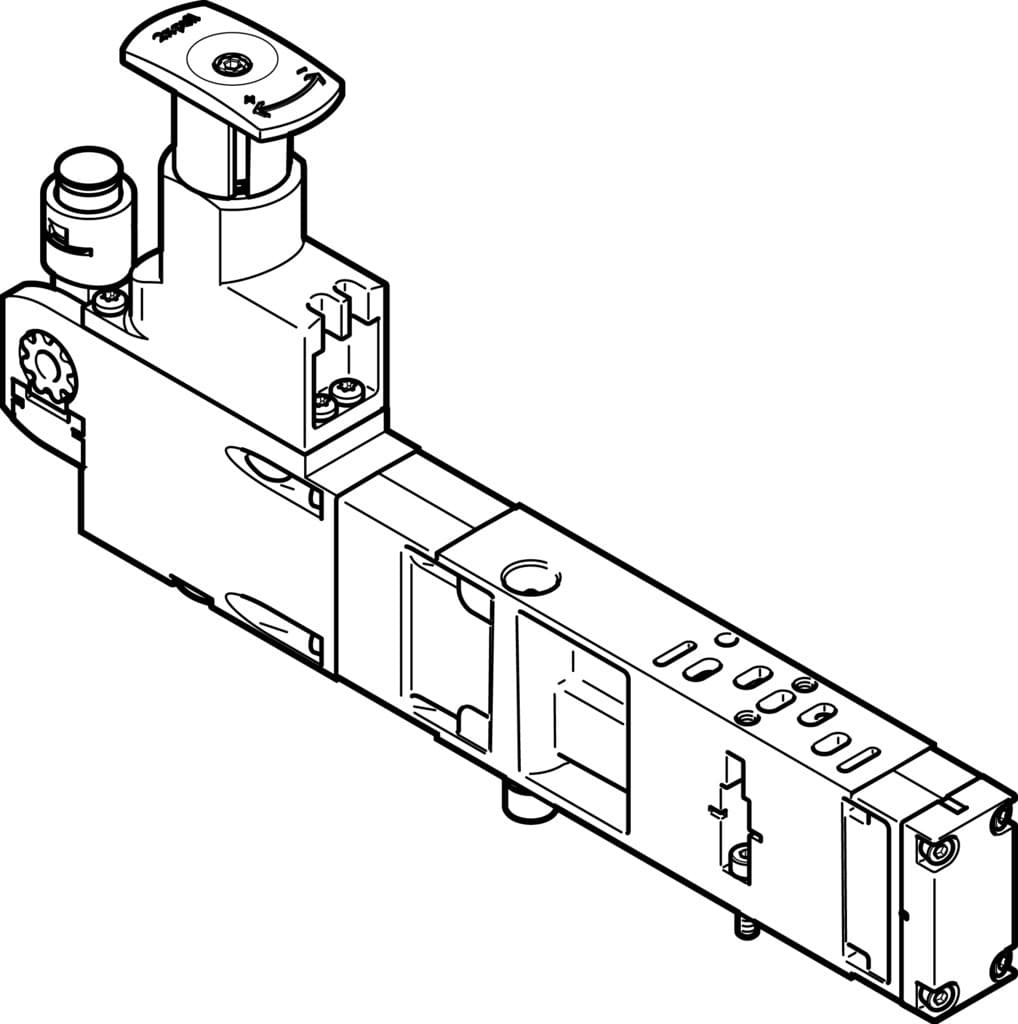

vabf-s4-2-r3c2-c-10
Product ID:10544
Updated: 2026/4/3
Key Features
- 1Ensure constant output pressure for precise control applications. 2、Mount on manifold or individual sub-bases for flexible installation. 3、Meet ISO 8573-1:2010 standards and carry CE marking for compliance. 4、Construct with die-cast aluminum and PA panel for durability and corrosion resistance. 5、Regulate pressure from 2 to 10 bar using compressed air.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 18mm | Based on norm | ISO 15407-2 |
| Mounting position | Any | Controller function | Outlet pressure constant With secondary exhausting |
| Symbol | 00991579 | Optional pressure gauge | Possible |
| Operating pressure | 10bar | Pressure regulation range MPa | 0.2MPa 0.85MPa |
| Pressure regulation range | 2bar 8.5bar | Pressure regulation range psi | 29psi 123.25psi |
| Inlet pressure 1 | 0.5bar 10bar | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 367g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
| Pressure gauge connection | With retaining clamp | Material of operator panel | PA |
| Controller housing material | Die-cast aluminum | Manufacturer ID | 540157 |
Specifications may be subject to change without notice
