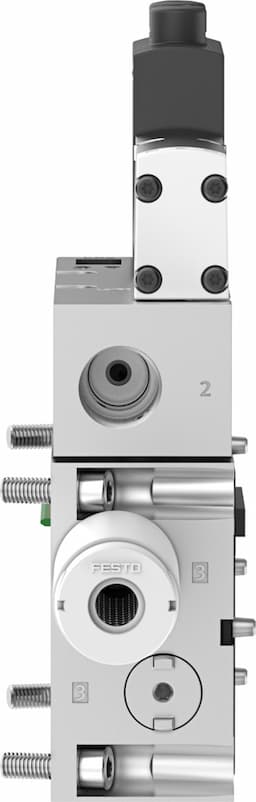

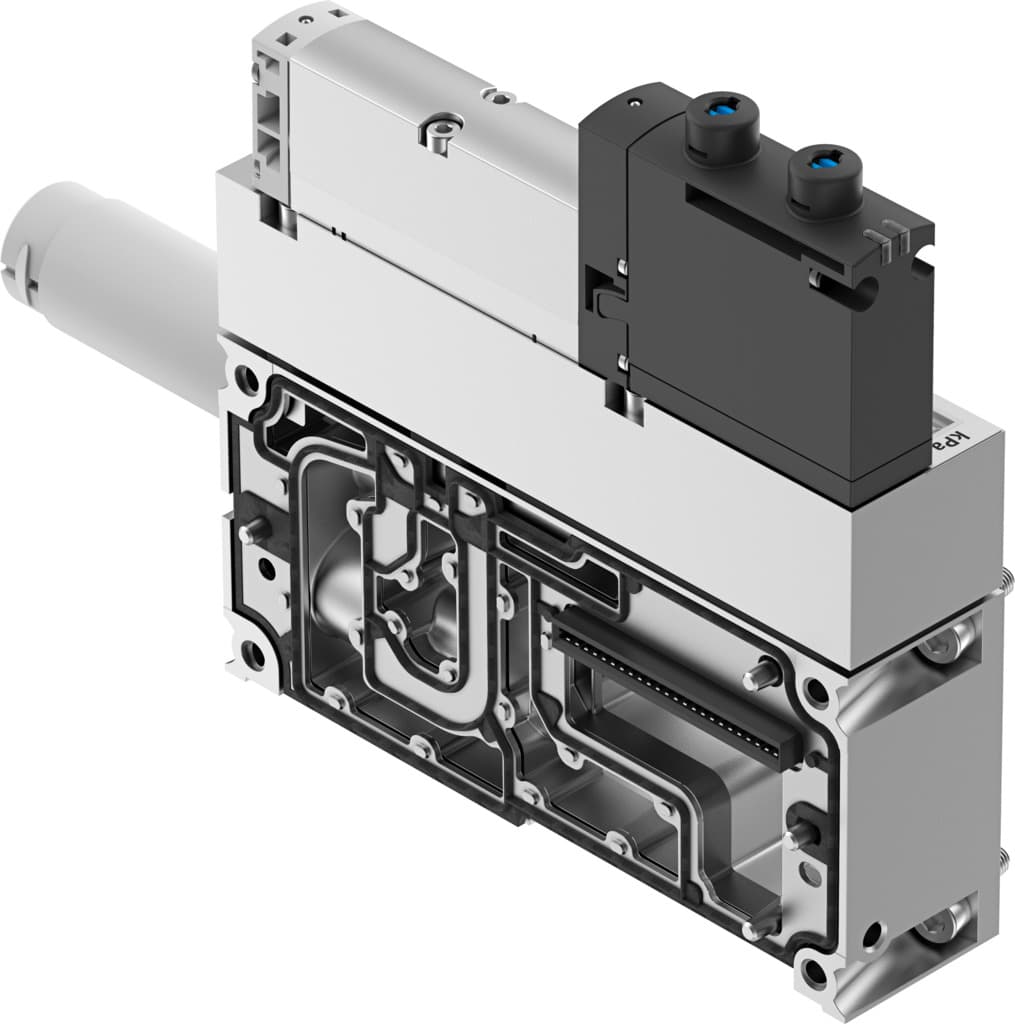

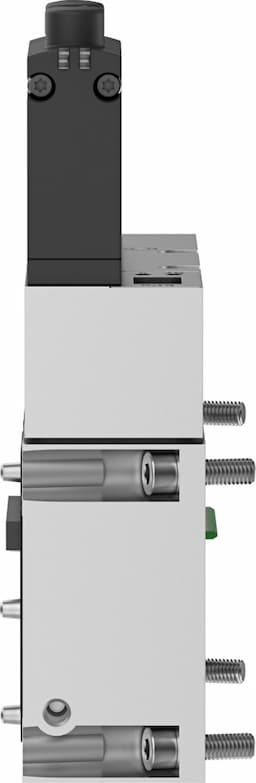

vabf-s4-2-v2b1-g38-cb-vh-14-a
Product ID:16508
Updated: 2026/4/3
Key Features
- 1Achieve compact integration with a 35 mm construction width. 2、Deliver high suction rates at 6 bar operating pressure for efficiency. 3、Control vacuum precisely with integrated electric ejector pulse. 4、Ensure durability using wrought aluminum and stainless steel. 5、Meet safety standards with EU EMC Directive and CE compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 35mm | Nominal width of Laval nozzle | 1.4mm |
| Muffler construction type | Open | Actuation type | Electrical |
| Reverse polarity protection | for all electrical connections | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Manual override | Detenting Non-detenting Covered |
| Integrated function | Electric ejector pulse Flow control Shut off valve, electric Air saving function, electrical Non-return valve Pneumatic muffler open Vacuum switch | Measured variable | Relative pressure |
| Measuring principle | Piezoresistive | Switching function | Window comparator Threshold value comparator |

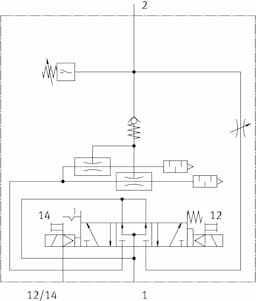

| Symbol | 00995924 | Valve function | 5/3, pressurized |
| Display type | LED LED display 2-digit | Displayable unit(s) | kPa |
| Setting range threshold value | 0MPa 0.099MPa | Setting range hysteresis | 0MPa 0.09MPa |
| Setting options | Teach-in Via parameter sets | Signal status display | LED |
| Sensor switching status indication | LED | Operating pressure for max. suction rate | 4bar |
| Operating pressure | 4bar 8bar | Operating pressure for max. vacuum | 4bar |
| Max. vacuum | 0.092MPa | Nominal operating pressure | 6bar |
| Pilot pressure | 4bar 10bar | Max. suction rate with respect to atmosphere | 51l/min |
| Air supply time at nominal operating pressure | 0.2s | DC operating voltage range | 21.6V 30V |
| Idle current | 30mA | Duty cycle | 100% |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Noise level at nominal operating pressure | 70dB(A) |
| Degree of protection | IP65 | Protection class | III |
| Ambient temperature | -5°C 50°C | Product weight | 915g |
| Pressure measuring range | -1bar 0bar | Display range start value | 0MPa |
| Display range end value | 0.099MPa | Accuracy in ± % FS | 3%FS |
| Reproducibility, switching value FS | 1% | Electrical actuation | Fieldbus |
| Electrical connection | Via CPX | Pneumatic connection 3 | Pneumatic muffler open |
| Vacuum connection | G3/8 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Female nozzle material | POM |
| Housing material | Wrought aluminum alloy | Plate material | Die-cast aluminum |
| Material of adjusting screw | High-alloy stainless steel | Muffler material | POM PU foam |
| Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 8088778 |
Specifications may be subject to change without notice
