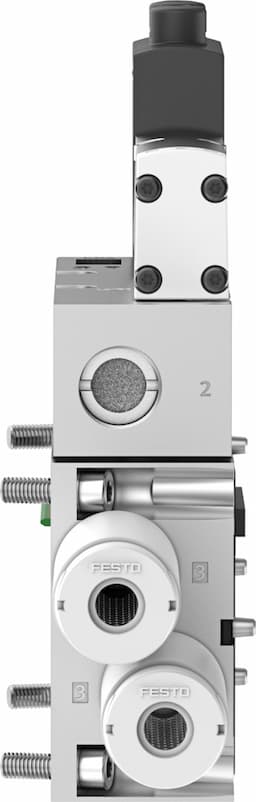

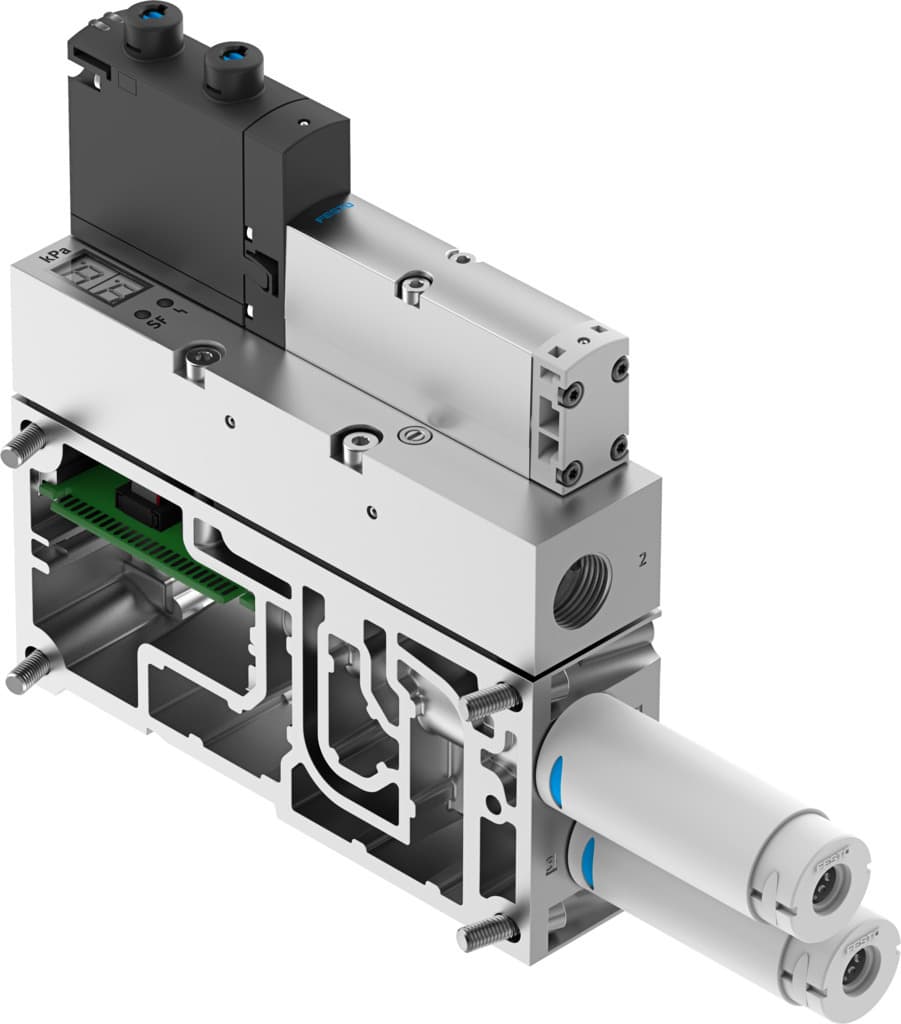

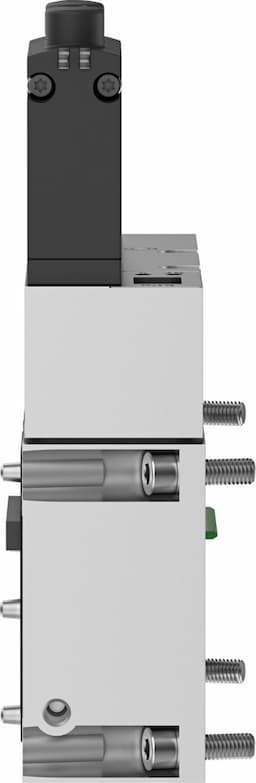

vabf-s4-2-v2b1-g38-cb-vh-20-a
Product ID:16200
Updated: 2026/7/4
Key Features
- 1Deliver high vacuum performance up to 92 kPa.
- 2Ensure safe operation with reverse polarity protection.
- 3Integrate advanced control functions like flow control.
- 4Simplify setup with a compact 35 mm design.
- 5Enhance precision using the integrated vacuum switch.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 35mm | Nominal width of Laval nozzle | 2mm |
| Muffler construction type | Open | Actuation type | Electrical |
| Reverse polarity protection | for all electrical connections | Mounting position | Any |
| Ejector characteristics | High vacuum Standard | Manual override | Detenting Non-detenting Covered |
| Integrated function | Electric ejector pulse Flow control Shut off valve, electric Air saving function, electrical Non-return valve Pneumatic muffler open Vacuum switch | Measured variable | Relative pressure |
| Measuring principle | Piezoresistive | Switching function | Window comparator Threshold value comparator |
| Symbol | 00995924 | Valve function | 5/3, pressurized |
| Display type | LED LED display 2-digit | Displayable unit(s) | kPa |
| Setting range threshold value | 0MPa 0.099MPa | Setting range hysteresis | 0MPa 0.09MPa |
| Setting options | Teach-in Via parameter sets | Signal status display | LED |
| Sensor switching status indication | LED | Operating pressure for max. suction rate | 4bar |
| Operating pressure | 4bar 8bar | Operating pressure for max. vacuum | 4bar |
| Max. vacuum | 0.092MPa | Nominal operating pressure | 6bar |
| Pilot pressure | 4bar 10bar | Max. suction rate with respect to atmosphere | 99l/min |
| Air supply time at nominal operating pressure | 0.2s | DC operating voltage range | 21.6V 30V |
| Idle current | 30mA | Duty cycle | 100% |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Noise level at nominal operating pressure | 73dB(A) |
| Degree of protection | IP65 | Protection class | III |
| Ambient temperature | -5°C 50°C | Product weight | 920g |
| Pressure measuring range | -1bar 0bar | Display range start value | 0MPa |
| Display range end value | 0.099MPa | Accuracy in ± % FS | 3%FS |
| Reproducibility, switching value FS | 1% | Electrical actuation | Fieldbus |
| Electrical connection | Via CPX | Pneumatic connection 3 | Pneumatic muffler open |
| Vacuum connection | G3/8 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Female nozzle material | POM |
| Housing material | Wrought aluminum alloy | Plate material | Die-cast aluminum |
| Material of adjusting screw | High-alloy stainless steel | Muffler material | POM PU foam |
| Material of screws | Steel | Material of jet nozzle | Wrought aluminum alloy |
| Manufacturer ID | 8067140 |
Specifications may be subject to change without notice
