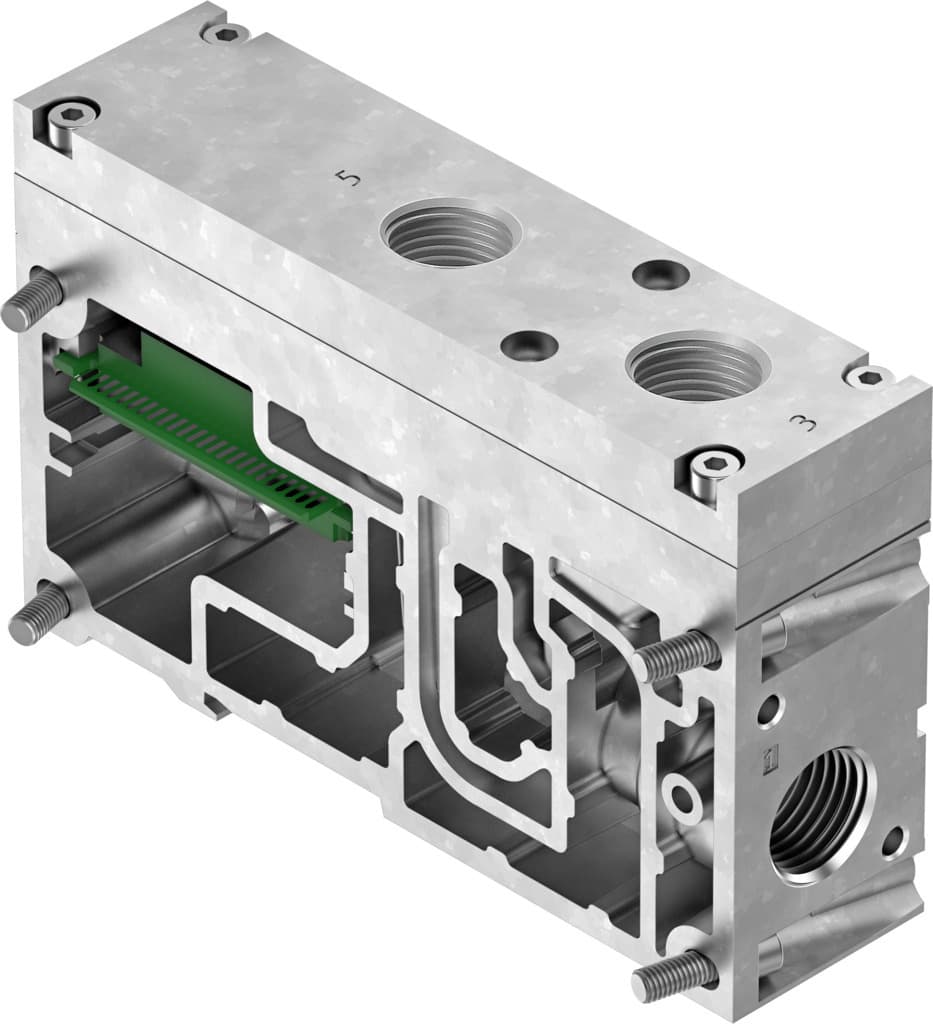

vabf-s6-1-p1a6-g12-cb
Product ID:16669
Updated: 2026/4/3
Key Features
- 1Ensure reliable pneumatic operations with a robust G1/2 port. 2、Eliminate corrosion stress with a class 0 corrosion resistance rating. 3、Guarantee durability using die-cast aluminum RoHS-compliant construction. 4、Save space with a compact design measuring only 38 mm in width. 5、Meet EU safety and quality standards with CE marking.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 38mm | CE marking (see declaration of conformity) | As per EU low voltage directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 600g | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 3 | G1/2 | Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum | Plate material | Die-cast aluminum |
| Manufacturer ID | 8092502 |
Specifications may be subject to change without notice
