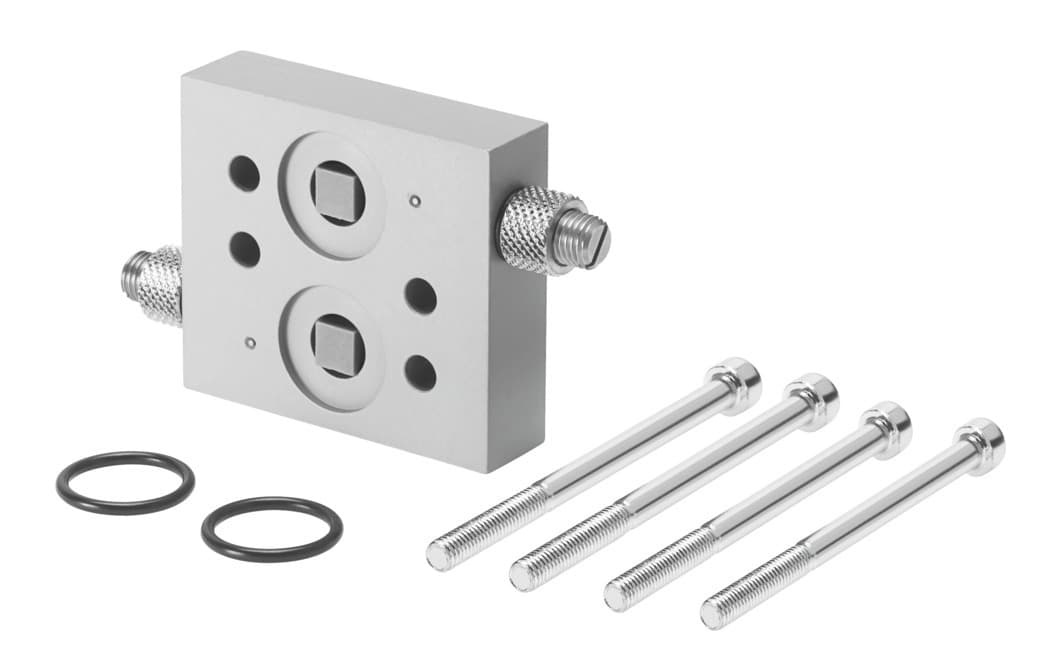

vabf-s7-f1b1p2-f
Product ID:13090
Updated: 2026/4/4
Key Features
- 1Achieve very high corrosion stress resistance with CRC 4 classification. 2、Operate safely in Zone 1, Zone 2, Zone 21, and Zone 22 environments. 3、Select optional mounting positions for external or internal pilot air supply. 4、Ensure durability in harsh conditions with IP65 degree of protection. 5、Meet RoHS compliance with ematal-coated aluminum and NBR seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pilot air supply port | External Internal |
| Symbol | 00991454 | Operating pressure | 0bar 12bar |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP65 | Type of mounting | With through-hole |
| Pilot air port 12 | G1/4 | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | Flange 1/4 NAMUR connection diagram | Pneumatic connection 3 | G1/4 |
| Note on materials | RoHS-compliant | Material of sub-base | Aluminum, ematal coated |
| Seals material | NBR | Manufacturer ID | 563395 |
Specifications may be subject to change without notice
