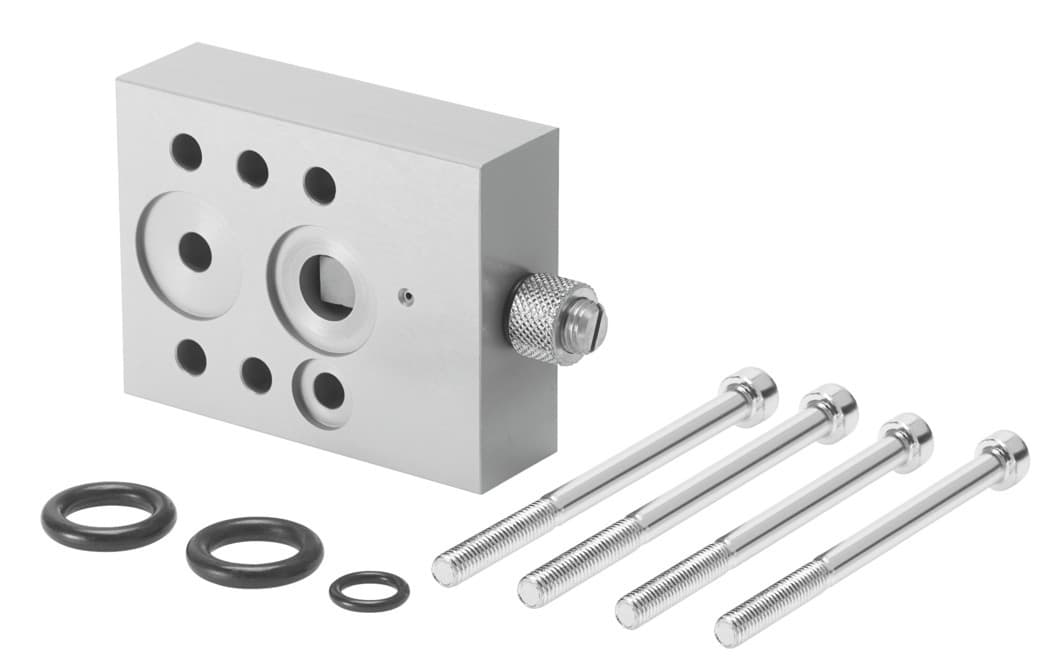

vabf-s7-f1b5p1-f
Product ID:13094
Updated: 2026/7/19
Key Features
- 1Ensure durability in severe environments with CRC 4 classification.
- 2Connect to external or internal pilot air supplies for flexibility.
- 3Withstand harsh industrial conditions with a robust design.
- 4Meet ISO 8573-1:2010 standards for operating medium purity.
- 5Achieve long-lasting performance with Ematal-coated aluminum and NBR seals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Pilot air supply port | External Internal |
| Symbol | 00991454 | Operating pressure | 0bar 12bar |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP65 | Type of mounting | With through-hole |
| Pilot air port 12 | G1/4 | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | Flange 1/4 NAMUR connection diagram | Pneumatic connection 3 | G1/4 |
| Note on materials | RoHS-compliant | Material of sub-base | Aluminum, ematal coated |
| Seals material | NBR | Manufacturer ID | 563401 |
Specifications may be subject to change without notice
