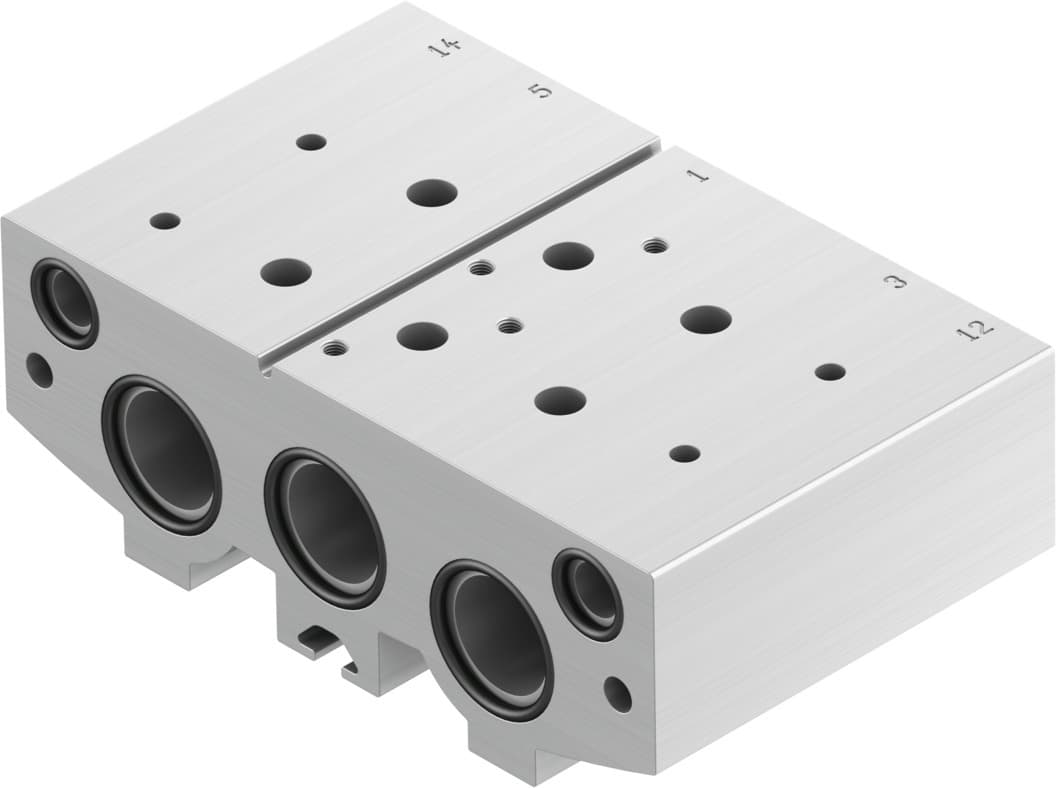

vabm-b10-20eee-g38-2
Product ID:14535
Updated: 2026/4/3
Key Features
- 1Utilize a 22 mm grid dimension for efficient space optimization. 2、Select optional mounting positions for flexible installation. 3、Resist corrosion with a moderate stress class (CRC 2) for durability. 4、Connect 3 pneumatic lines (G3/8) and 2 pilot air ports (G1/8). 5、Ensure compliance with RoHS standards using wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 492g |
| Type of mounting | With through-hole | Pilot air port 12 | G1/8 |
| Pilot air port 14 | G1/8 | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 3 | G3/8 | Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576489 |
Specifications may be subject to change without notice
