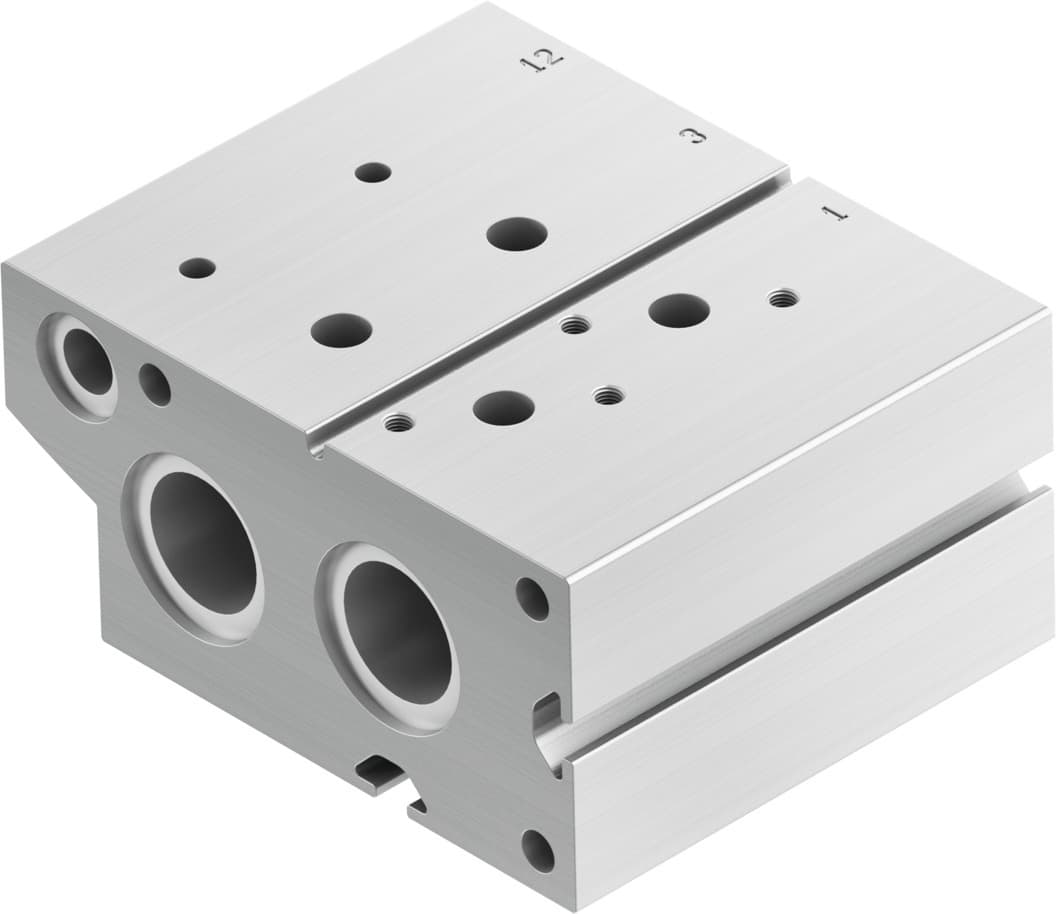

vabm-b10-20eee-g38-2-p3
Product ID:14536
Updated: 2026/7/14
Key Features
- 1Maximize panel space with a compact 22mm grid dimension.
- 2Install flexibly using the optional mounting positions.
- 3Withstand moderate corrosion stress with CRC class 2 rating.
- 4Ensure reliable pneumatic performance via G3/8 connections.
- 5Meet environmental standards using RoHS-compliant aluminium.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 324g |
| Type of mounting | With through-hole | Pilot air port 12 | G1/8 |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 3 | G3/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576490 |
Specifications may be subject to change without notice
