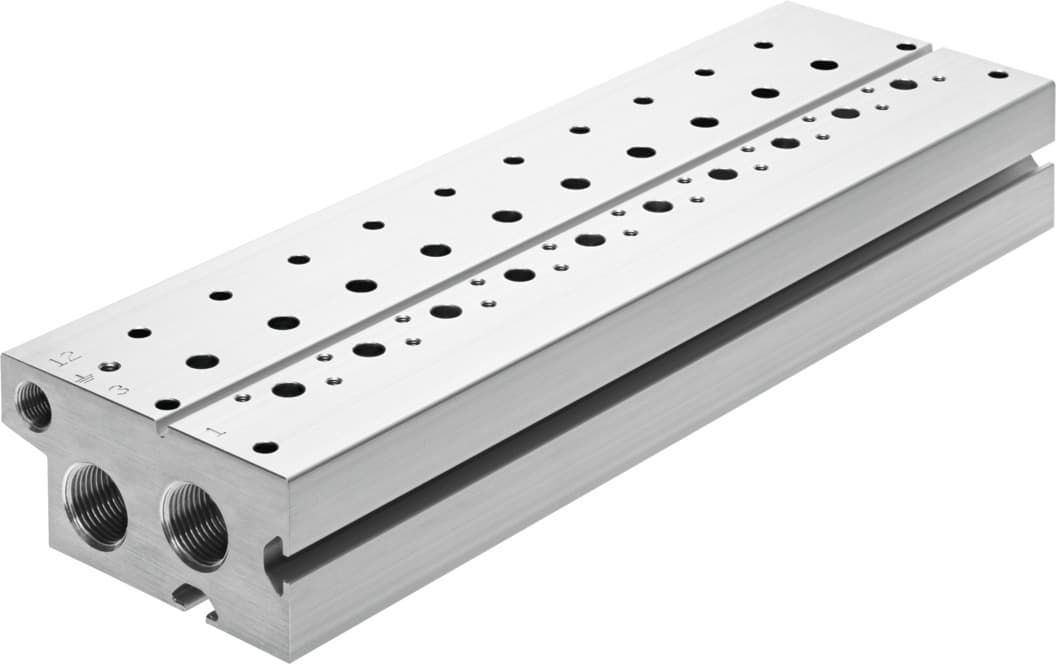

vabm-b10-20e-n38-10-p3
Product ID:14522
Updated: 2026/4/3
Key Features
- 1Utilize a compact 22mm grid dimension for space-efficient panel design. 2、Select from optional mounting positions for versatile installation. 3、Configure up to 10 maximum valve positions for complex pneumatic systems. 4、Resist moderate corrosion stress (CRC 2) in challenging environments. 5、Ensure RoHS compliance with wrought aluminum alloy construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 10 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1451g |
| Type of mounting | With through-hole | Pilot air port 12 | 1/8 NPT |
| Pneumatic connection 1 | 3/8 NPT | Pneumatic connection 3 | 3/8 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576461 |
Specifications may be subject to change without notice
