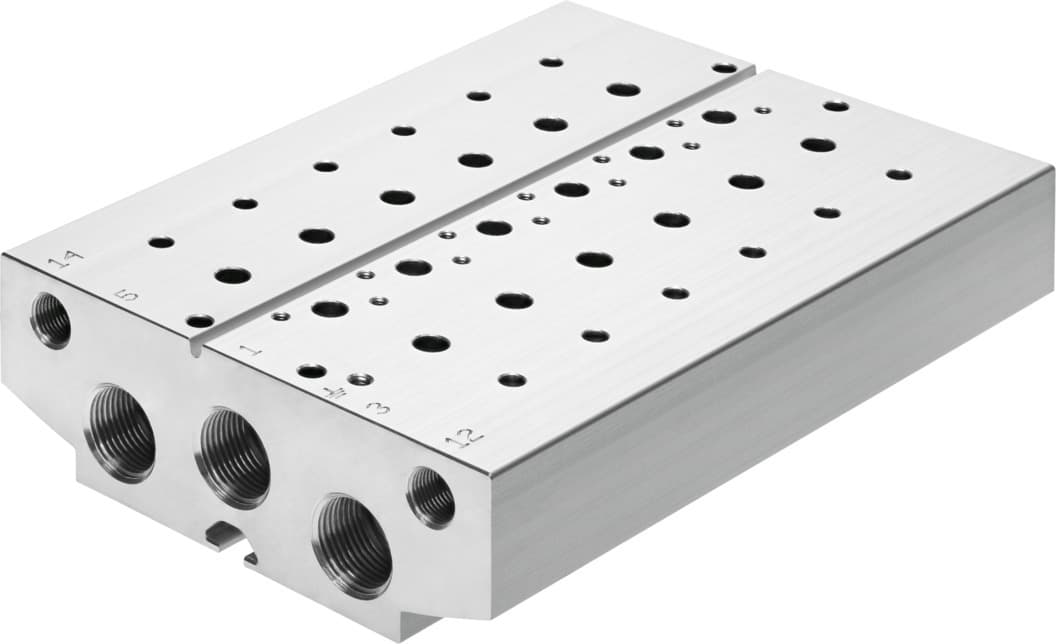

vabm-b10-20e-n38-5
Product ID:14473
Updated: 2026/4/3
Key Features
- 1Maximize space with a 22mm grid dimension. 2、Install flexibly with an optional mounting position. 3、Support up to 5 valve positions for modular control. 4、Resist moderate corrosion with CRC class 2 protection. 5、Connect easily using 3/8 NPT ports.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 5 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1239g |
| Type of mounting | With through-hole | Pilot air port 12 | 1/8 NPT |
| Pilot air port 14 | 1/8 NPT | Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 3 | 3/8 NPT | Pneumatic connection 5 | 3/8 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576354 |
Specifications may be subject to change without notice
