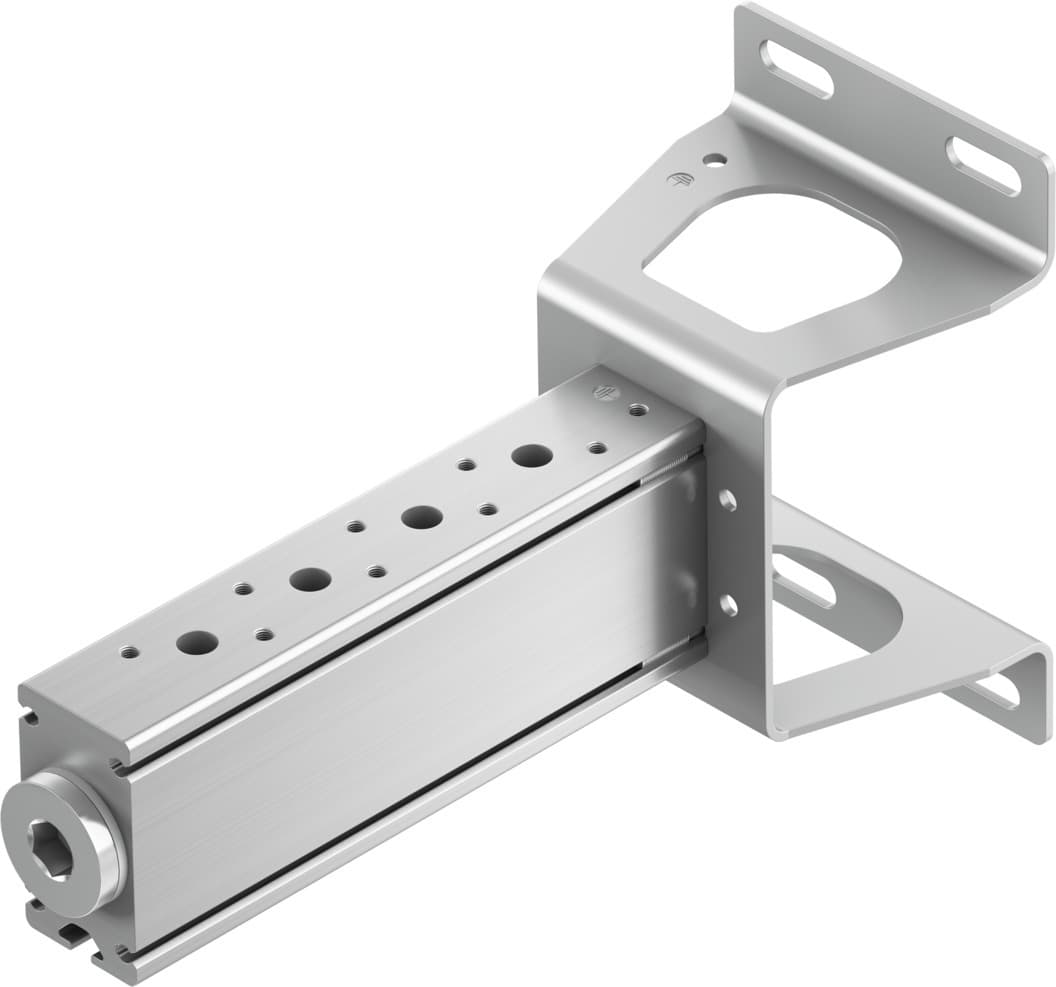

vabm-b10-20-g38-4-p53-e
Product ID:14497
Updated: 2026/7/14
Key Features
- 1Utilize a 22mm grid dimension for precise and easy assembly.
- 2Achieve moderate corrosion resistance with CRC 2 class protection.
- 3Support up to 4 valve positions for flexible system design.
- 4Ensure compatibility with VDMA24364-B1/B2-L industry standards.
- 5Construct from RoHS-compliant wrought aluminum alloy.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 324g |
| Type of mounting | With mounting bracket | Pneumatic connection 1 | G3/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576416 |
Specifications may be subject to change without notice
