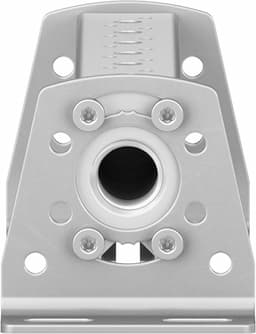

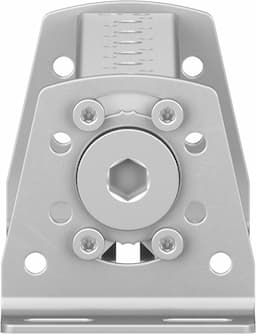

vabm-b10-20-g38-5-p53
Product ID:14481
Updated: 2026/4/3
Key Features
- 1Utilize a 22mm grid dimension for efficient space. 2、Install flexibly with an optional mounting position. 3、Control reliably with 5 maximum valve positions. 4、Resist moderate corrosion with CRC class 2. 5、Ensure compliance with RoHS-wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 5 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 352g |
| Type of mounting | With mounting bracket | Pneumatic connection 1 | G3/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576366 |
Specifications may be subject to change without notice
