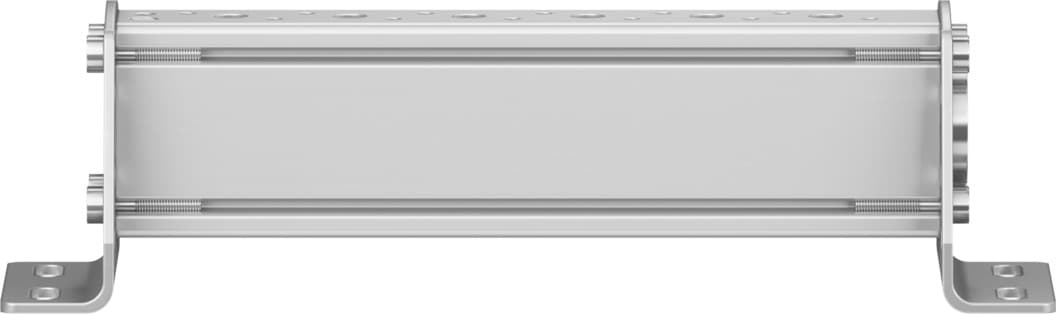

vabm-b10-20-g38-6-p53
Product ID:14482
Updated: 2026/4/3
Key Features
- 1Efficiently manage up to 6 pneumatic valve positions for centralized control. 2、Integrate easily with standard systems using G3/8 pneumatic connections. 3、Ensure durability in various environments with moderate corrosion resistance. 4、Save valuable panel space with a compact 22mm width dimension. 5、Meet environmental standards using RoHS-compliant construction materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 395g |
| Type of mounting | With mounting bracket | Pneumatic connection 1 | G3/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576367 |
Specifications may be subject to change without notice
