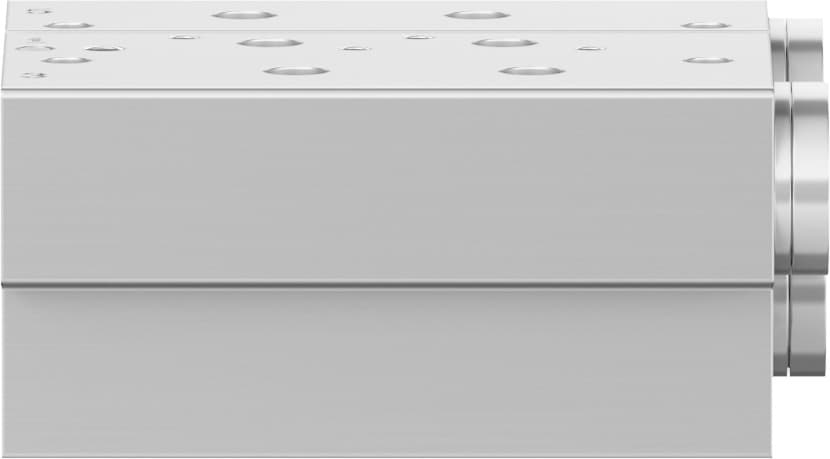

vabm-b10-20s-g14-2
Product ID:14498
Updated: 2026/4/3
Key Features
- 1Maximize space with a compact, 22mm grid manifold design. 2、Ensure moderate corrosion resistance with CRC class 2 rating. 3、Simplify installation using standard G1/4 pneumatic connections. 4、Gain durability from high-strength wrought aluminum alloy. 5、Meet environmental standards with full RoHS compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 344g |
| Type of mounting | With through-hole | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 3 | G1/4 | Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576417 |
Specifications may be subject to change without notice
