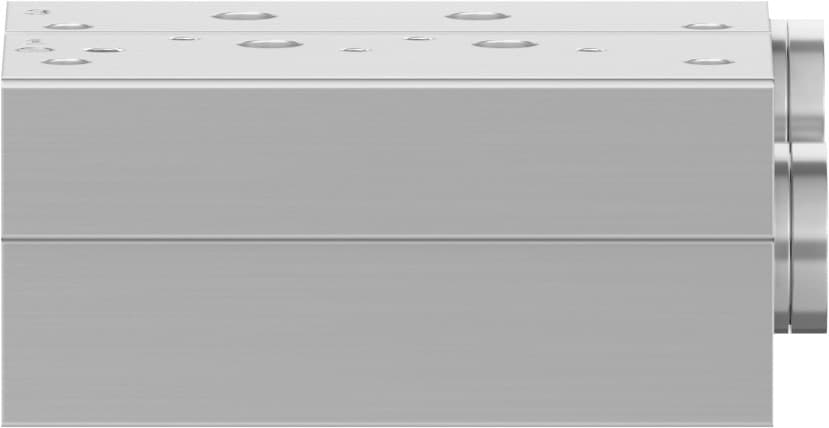

vabm-b10-20s-g14-2-p3
Product ID:14523
Updated: 2026/7/14
Key Features
- 1Save space with a compact 22mm grid dimension design.
- 2Install flexibly using optional mounting positions.
- 3Ensure robustness with RoHS-compliant wrought aluminum alloy.
- 4Resist moderate corrosion stress classified as CRC 2.
- 5Connect reliably via G1/4 ports for high-performance pneumatics.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 280g |
| Type of mounting | With through-hole | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 576465 |
Specifications may be subject to change without notice
